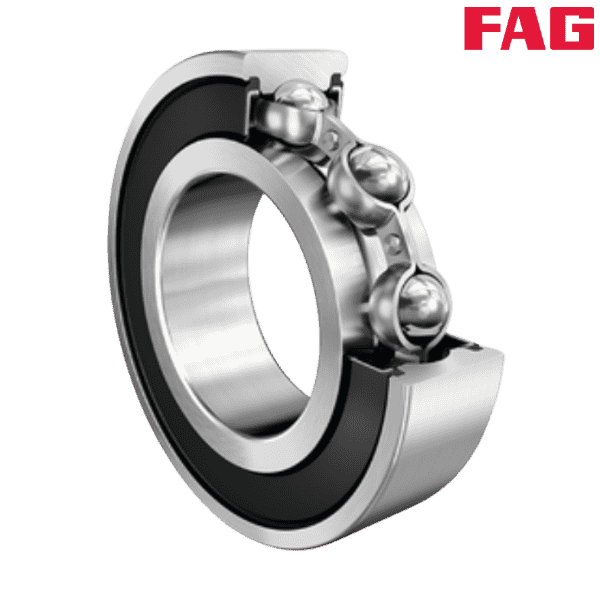

Description
Brand - FAG
Item Number - 6024-2RSR FAG
Category - Deep Groove Ball Bearing Single Row

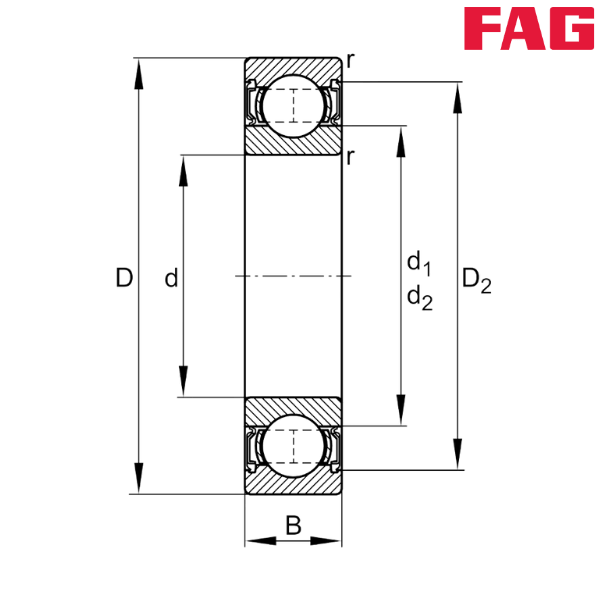

Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 180
Width (B) mm - 28
Basic Dynamic Load Rating (Cr) N - 88000
Basic Static Load Rating (C0r) N - 77000
Fatigue Limit Load (Cur) N - 3650
Limiting Speed (nG) min–1 - 1920
Calculation Factor (f0) - 15.8
Weight (m) kg - 2.21
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 165.36
Shoulder Diameter Inner Ring (d1) mm - 139.4

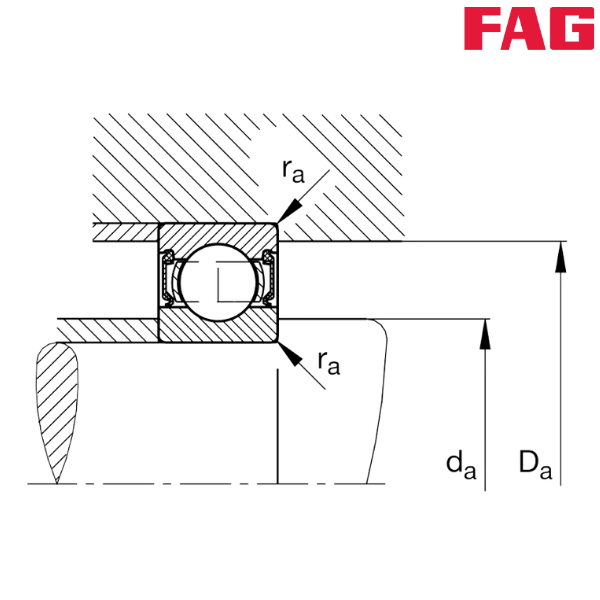

Minimum Diameter Shaft Shoulder (da) mm - 128.8
Maximum Diameter of Housing Shoulder (Da) mm - 171.2
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
