Description
Brand - FAG
Item Number - 6020-2RSR FAG
Category - Deep Groove Ball Bearing Single Row

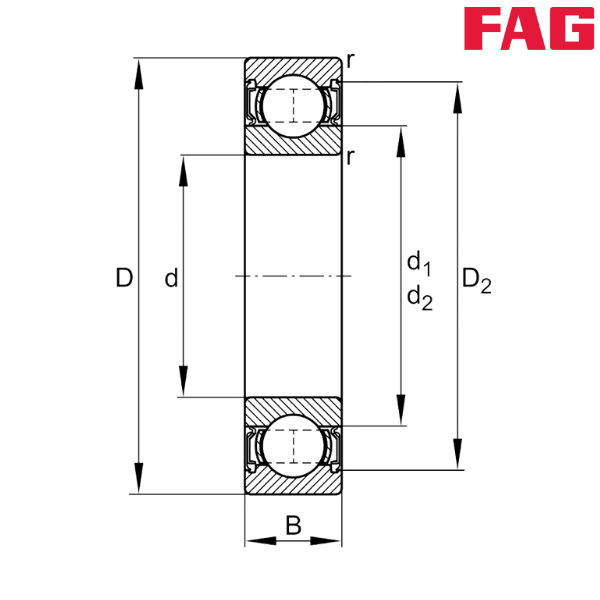

Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 24
Basic Dynamic Load Rating (Cr) N - 64000
Basic Static Load Rating (C0r) N - 54000
Fatigue Limit Load (Cur) N - 3050
Limiting Speed (nG) min–1 - 2300
Calculation Factor (f0) - 15.8
Weight (m) kg - 1.32
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 137.3
Shoulder Diameter Inner Ring (d1) mm - 116.2

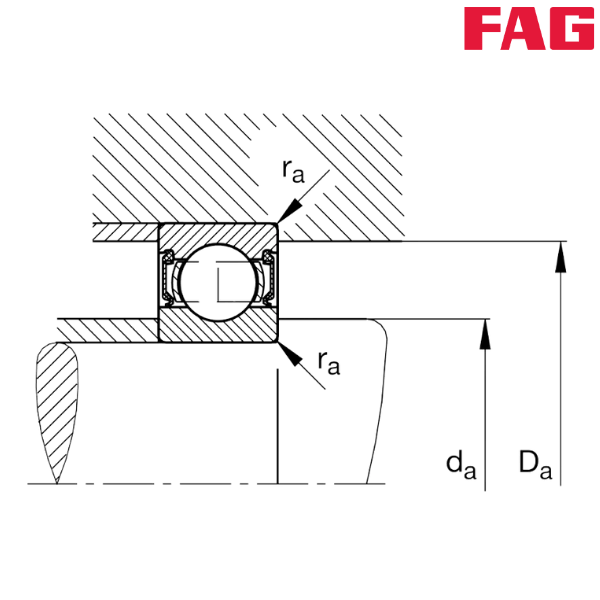

Minimum Diameter Shaft Shoulder (da) mm - 107
Maximum Diameter of Housing Shoulder (Da) mm - 143
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)

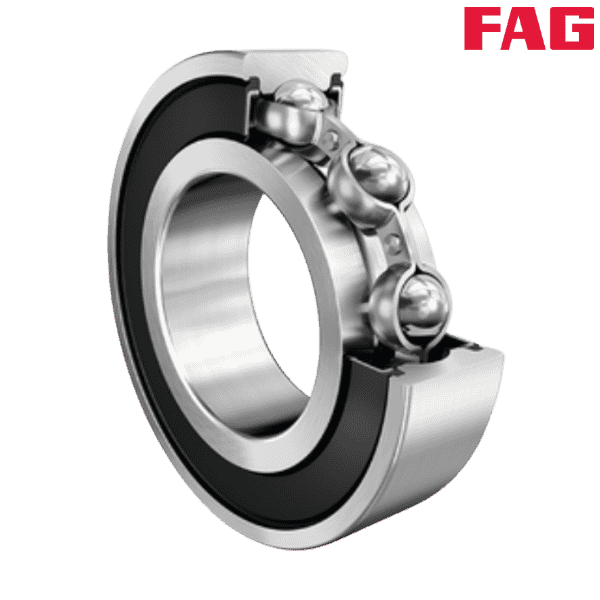

** Images are for representation purposes only
