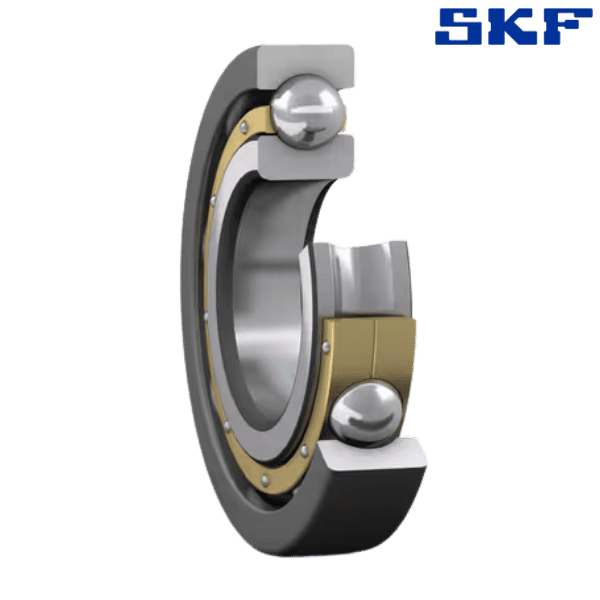

6016 M/P65HS0VL0241 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 6016 M/P65HS0VL0241 SKF
Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

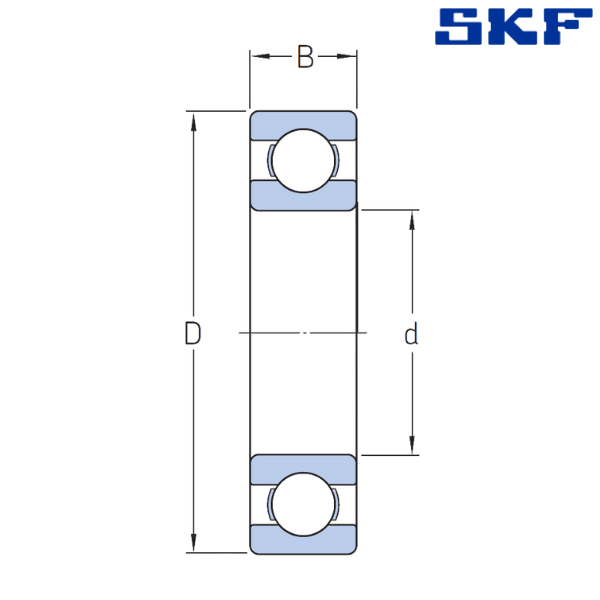

Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 125
Width (B) mm - 22
Dynamic Load Rating (C) kN - 49.4
Static Load Rating (C0) kN - 40
Limiting Speed (r/min) - 7000
Weight (Kg) - 1.02

Designation Prefixes and Suffixes:

M - Machined Brass Cage, Rolling Element Centred
VL - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
Example: VL0241 Aluminium Oxide Coated Outside Surface of Outer Ring for Electrical Resistance up to 3000V DC
P65H - P6 + C5H

** Images are for representation purposes only
