Description
Brand - SKF
Item Number - 6016 M/HC5P65HS0VG319 SKF
Category - Traction Motor, Hybrid Deep Groove Ball Bearings

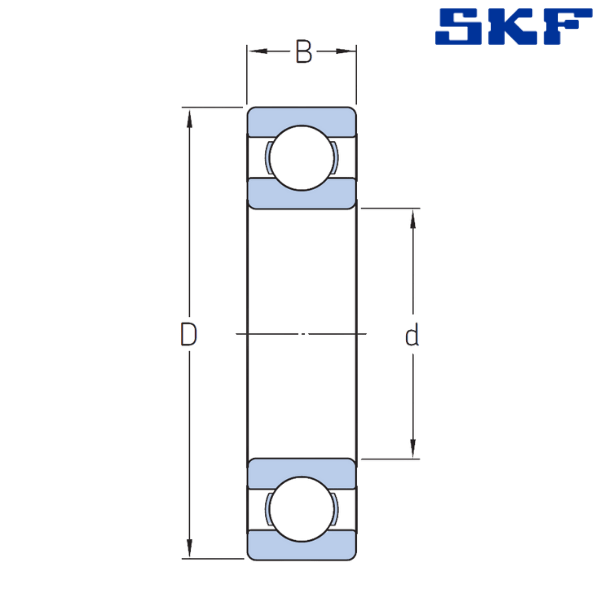

Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 125
Width (B) mm - 22
Dynamic Load Rating (C) kN - 49.4
Static Load Rating (C0) kN - 40
Limiting Speed (r/min) - 11000
Weight (Kg) - 0.89
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C5 - Bearing Internal Clearance Greater Than C4
VG - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
HC5 - Rolling Elements Made of Silicon Nitride
P65H - P6 + C5H
** Images are for representation purposes only
