Description
Brand - FAG
Item Number - 6016-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 125
Width (B) mm - 22
Basic Dynamic Load Rating (Cr) N - 51000
Basic Static Load Rating (C0r) N - 40000
Fatigue Limit Load (Cur) N - 2410
Limiting Speed (nG) min–1 - 6300
Speed Rating (nϑr) min–1 - 6100
Calculation Factor (f0) - 15.7
Weight (m) kg - 0.893
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 113.7
Shoulder Diameter Inner Ring (d1) mm - 93.7

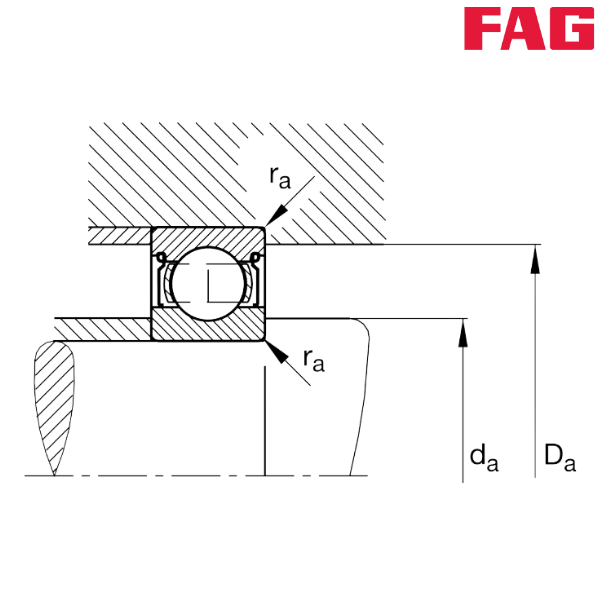

Minimum Diameter Shaft Shoulder (da) mm - 86
Maximum Diameter of Housing Shoulder (Da) mm - 119
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
