Description
Brand - FAG
Item Number - 6015-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 115
Width (B) mm - 20
Basic Dynamic Load Rating (Cr) N - 42000
Basic Static Load Rating (C0r) N - 33500
Fatigue Limit Load (Cur) N - 2020
Limiting Speed (nG) min–1 - 3050
Calculation Factor (f0) - 15.8
Weight (m) kg - 0.66
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 105.34
Shoulder Diameter Inner Ring (d1) mm - 88.05

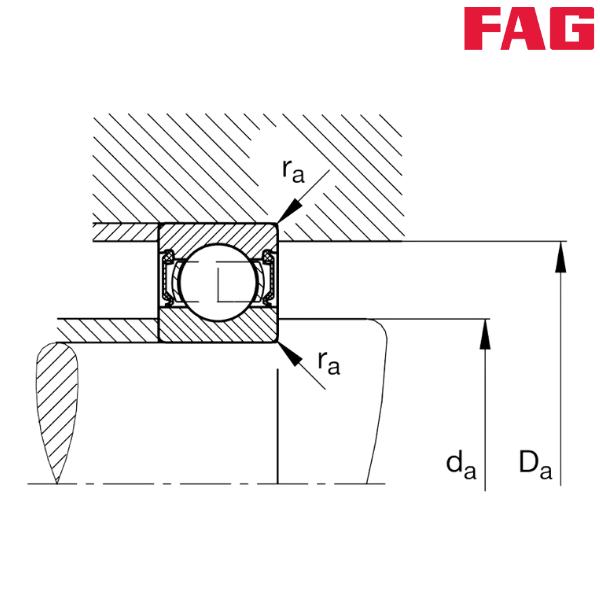

Minimum Diameter Shaft Shoulder (da) mm - 81
Maximum Diameter of Housing Shoulder (Da) mm - 109
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
