Description
Brand - FAG
Item Number - 6013-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 100
Width (B) mm - 18
Basic Dynamic Load Rating (Cr) N - 32500
Basic Static Load Rating (C0r) N - 25000
Fatigue Limit Load (Cur) N - 1300
Limiting Speed (nG) min–1 - 8100
Speed Rating (nϑr) min–1 - 7100
Calculation Factor (f0) - 15.7
Weight (m) kg - 0.45
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 91.52
Shoulder Diameter Inner Ring (d1) mm - 76.225

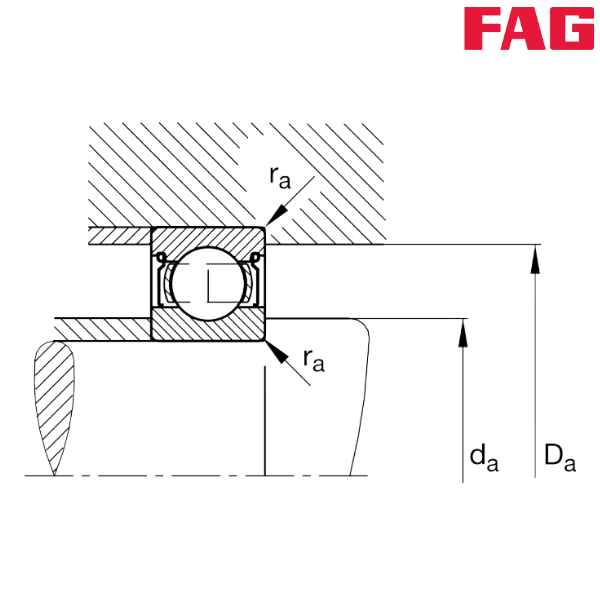

Minimum Diameter Shaft Shoulder (da) mm - 71
Maximum Diameter of Housing Shoulder (Da) mm - 94
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
