6009 BHTS 2RS C4 VT 220° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - 6009 BHTS 2RS C4 VT 220° BECO
Category - Ball Bearings for High Temperature
Bore Diameter (B) mm - 45
Outer Diameter (D) mm - 75
Width (W) mm - 16
Weight (kg) - 0.25
Limiting Speed (RPM) - 2240
Static Load at 220°C (kN) - 10.8
Static Load at 20°C (kN) - 14.3

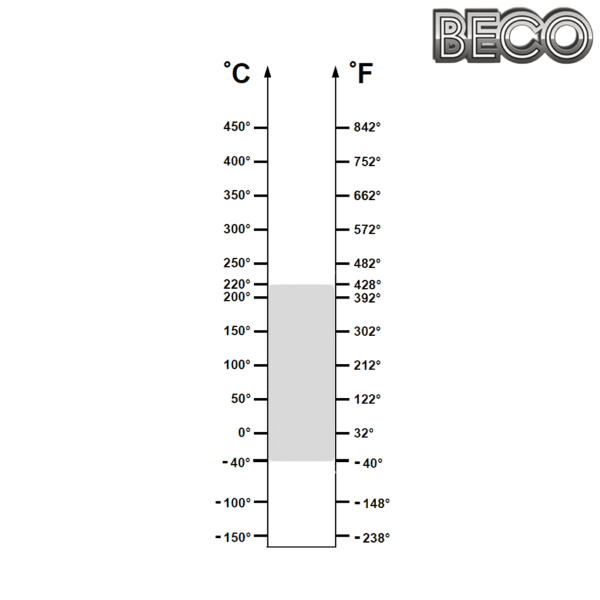

Operating Range - ‒40° / 220°C
Economic Operating Range - 150° / 220°C

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
