Description
Brand - FAG
Item Number - 6006-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 55
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 14500
Basic Static Load Rating (C0r) N - 8300
Fatigue Limit Load (Cur) N - 500
Limiting Speed (nG) min–1 - 10500
Calculation Factor (f0) - 14.8
Weight (m) kg - 0.113
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 50.22
Caliber Diameter Inner Ring (d2) mm - 36.67

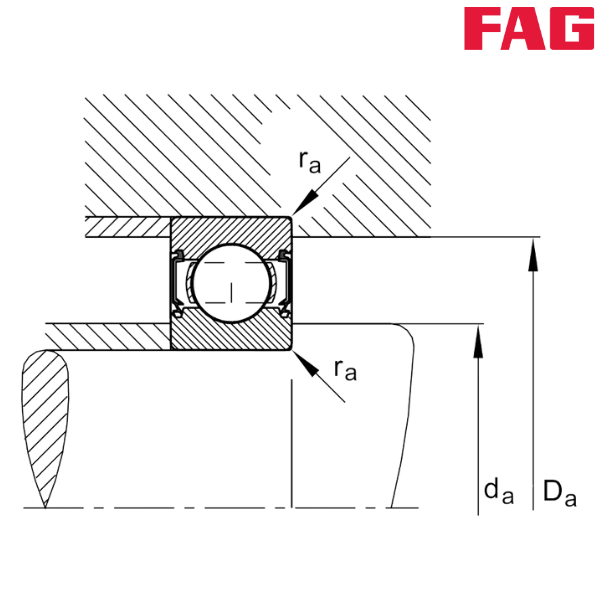

Minimum Diameter Shaft Shoulder (da) mm - 34.6
Maximum Diameter of Housing Shoulder (Da) mm - 50.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
