Description
Brand - ZEN
Item Number - 6003-2Z.T9H.C3 ZEN

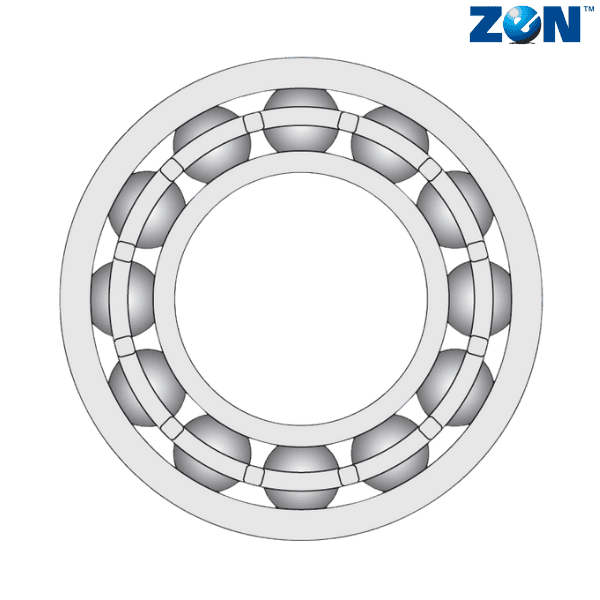

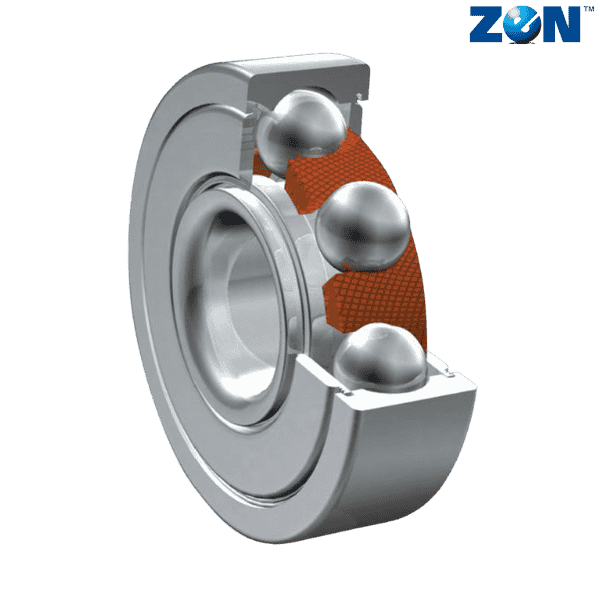

Category - Radial Ball Bearing with Plastic Cage

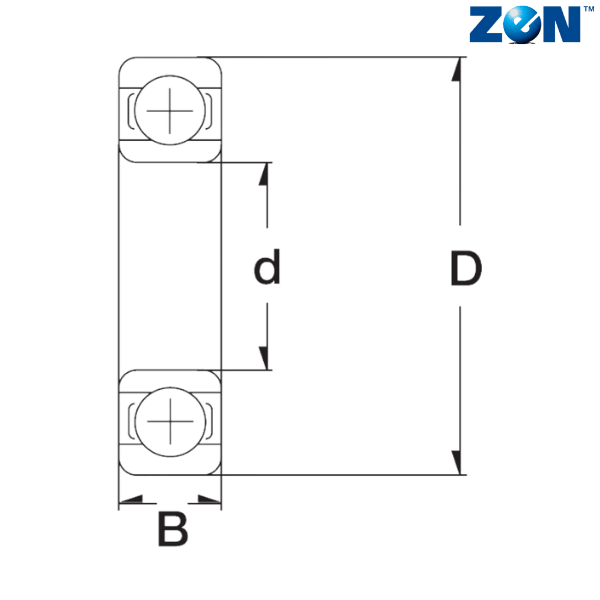

Inner Ring Dimension (d) mm - 17
Outer Ring Dimension (D) mm - 35
Width (B) mm - 10
Dynamic Load Rating (N) - 6000
Static Load Rating (N) - 3250
Limiting Speed - 22
Weight (kg) - 0.041
Radial Play - 0.011 - 0.025
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields
T9H - Glass Fibre Reinforced Cage
** Images are for representation purposes only
