566 - 563-B TIMKEN

Brand - TIMKEN
Item Number - 566 - 563-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style

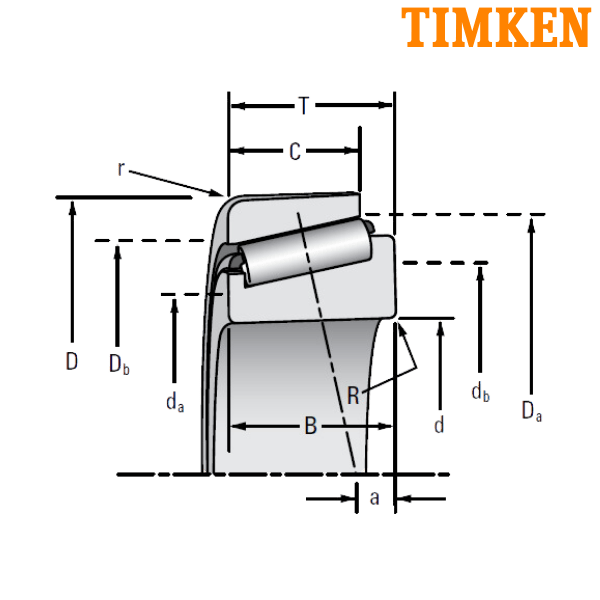

Bore Diameter (d) mm - 69.85
Bore Diameter (d) inch - 2.75
Outer Diameter (D) mm - 127
Outer Diameter (D) inch - 5
Bearing Width to Flange (T1) mm - 14.288
Bearing Width to Flange (T1) inch - 0.5625
Static Radial Rating (C0) kN - 262
Static Radial Rating (C0) lbs - 58900
Dynamic Radial Rating (1 million revolutions) (C1) kN - 182
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 40900
Dynamic Radial Rating (90 million revolutions) (C90) kN - 47.1
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 10600
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 29.4
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 6600
Flange Outer Diameter (D1) mm - 133.2
Flange Outer Diameter (D1) inch - 5.25
Flange Width (C2) mm - 6.4
Flange Width (C2) inch - 0.25
Cone Width (B) mm - 36.17
Cone Width (B) inch - 1.424
Cup Width (C) mm - 28.575
Cup Width (C) inch - 1.125
Effective Center Location (a) mm - -8.1
Effective Center Location (a) inch - -0.32
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.5
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 78
Cone Frontface Backing Diameter (da) inch - 3.07
Cone Backface Backing Diameter (db) mm - 85
Cone Backface Backing Diameter (db) inch - 3.35
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 121
Cup Frontface Backing Diameter (Da) inch - 4.76
Cup Backface Backing Diameter (Db) mm - 112
Cup Backface Backing Diameter (Db) inch - 4.41
Stiffness (Kr10^6) N/mm - 2.71
Stiffness (Kr10^6) lbs/in - 15.5
Stiffness (Fr) kN - 4.7
Stiffness (Fr) lbs - 1060
Stiffness (Ka10) N/mm - 0.303
Stiffness (Ka10) lbs/in - 1.73
Stiffness (Fa) kN - 2.9
Stiffness (Fa) lbs - 660
Speed Rating (RPM) - 4100
Weight (kg) - 1.97
Weight (lbs) - 4.34

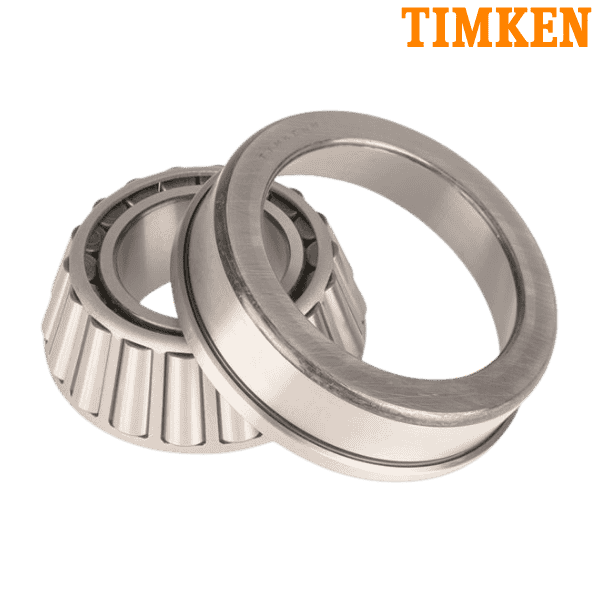

** Images are for representation purposes only
