Description
Brand - TIMKEN
Item Number - 543/532X TIMKEN
Also Known As - 543 - 532X
Category - Single Row Tapered Roller Bearing (TS Type)

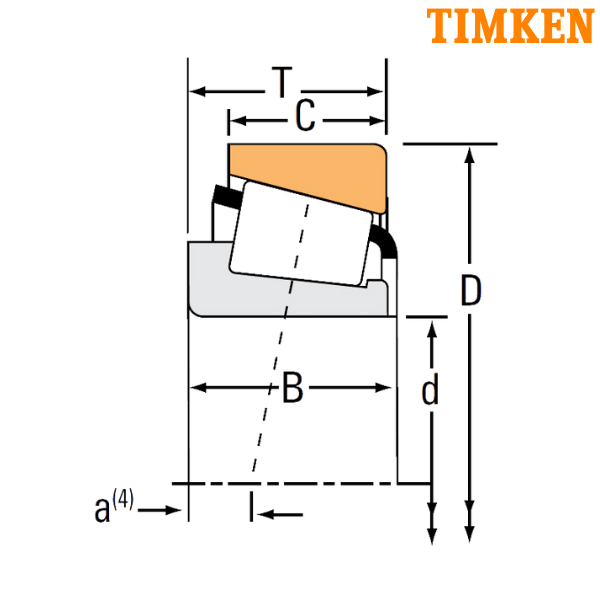

Bore Diameter (d) mm - 40
Bore Diameter (d) inch - 1.5748
Outer Diameter (D) mm - 107.95
Outer Diameter (D) inch - 4.25
Width (T) mm - 36.512
Width (T) inch - 1.4375
Dynamic Load Rating (C1) N - 172000
Dynamic Load Rating (C1) lbf - 38700
Factor (e) - 0.3
Factor (Y) - 2.02
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 44600
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 10000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 22700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5090
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.97
Basic Static Radial Load Rating (C0) N - 206000
Basic Static Radial Load Rating (C0) lbf - 46200
Cone Width (B) mm - 36.957
Cone Width (B) inch - 1.455
Cup Width (C) mm - 28.575
Cup Width (C) inch - 1.125
Effective Center Location (a) mm - -12.2
Effective Center Location (a) inch - -0.48

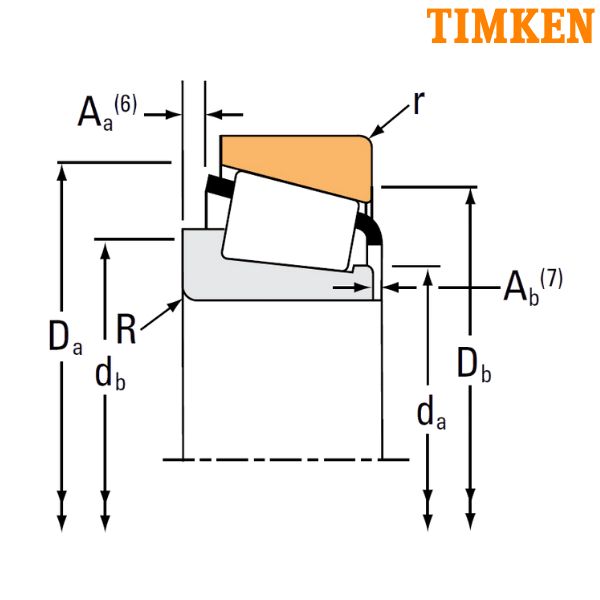

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 50
Cone Frontface Backing Diameter (da) inch - 1.97
Cone Backface Backing Diameter (db) mm - 57
Cone Backface Backing Diameter (db) inch - 2.24
Max Housing Fillet Radius (r) mm - 3.3
Max Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 100
Cup Frontface Backing Diameter (Da) inch - 3.94
Cup Backface Backing Diameter (Db) mm - 94
Cup Backface Backing Diameter (Db) inch - 3.7
Cage-Cone Backface Clearance (Aa) mm - 2.7
Cage-Cone Backface Clearance (Aa) inch - 0.1
Cage-Cone Frontface Clearance (Ab) mm - 1
Cage-Cone Frontface Clearance (Ab) inch - 0.04
Geometry Factor (G1) - 64.3
Geometry Factor (G2) - 16.1
Geometry Factor (Cg) - 0.0938
Weight (kg) - 1.74
Weight (lbs) - 3.85
Inner Part Number - 543
Outer Part Number - 532X

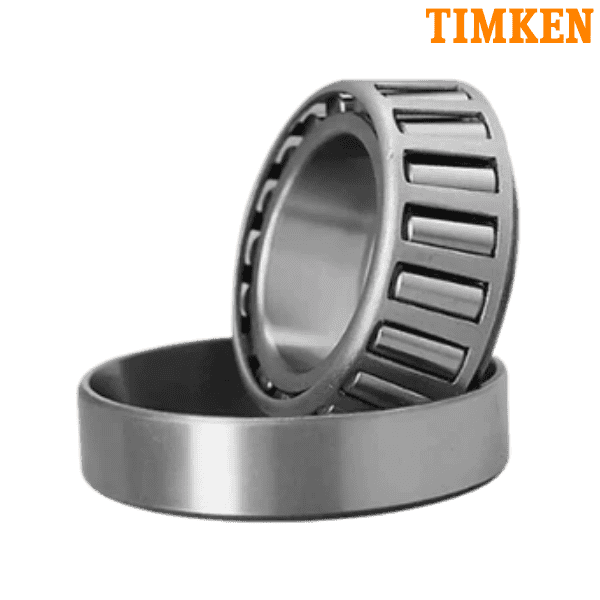

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
