Description
Brand - FAG
Item Number - 51484-M FAG

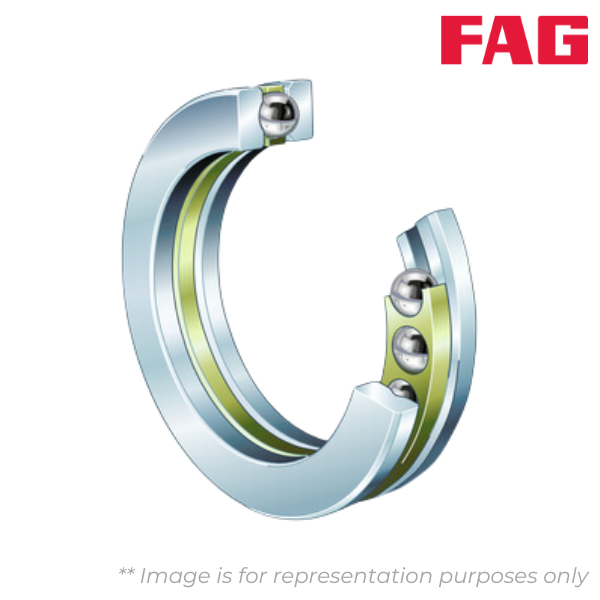

Category - Axial Deep Groove Ball Bearing
Weight (Kg) - 468

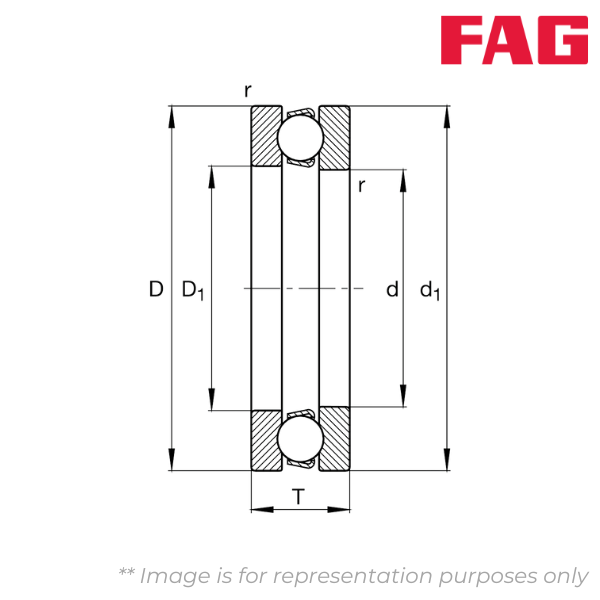

Inner Diameter Shaft Washer (d) mm - 420
Outer Diameter Housing Washer (D) mm - 730
Height (T) mm - 243
Inner Diameter Housing Washer (D1) mm - 425
Outer Diameter Shaft Washer (d1) mm - 725
Minimum Chamfer Dimension (r) mm - 7.5

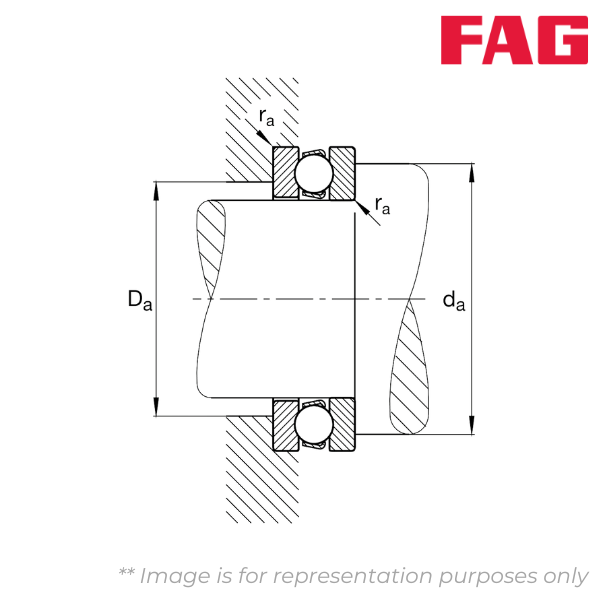

Minimum Diameter of Shaft Shoulder (da) mm - 606
Maximum Diameter of Housing Shoulder (Da) mm - 544
Maximum Fillet Radius (ra) mm - 6
Basic Dynamic Load Rating, Axial(Ca) kN - 1900
Basic Static Load Rating, Axial (C0a) kN - 11400
Fatigue Limit Load, Axial (Cua) kN - 214
Minimum Load Factor (A) - 670
Limiting Speed (nG) rpm - 340
