Description
Brand - ZEN
Item Number - 51224 ZEN
Category - Three Part Thrust Series
Inner ring dimension (d) mm - 120
Outer ring dimension (D) mm - 170
Width (B) mm - 39
Dynamic Load Rating (N) - 167000
Static Load Rating (N) - 399000
Limiting Speed (Grease) - 1.1
Limiting Speed (Oil) - 2.2
Weight (kg) - 2.71
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

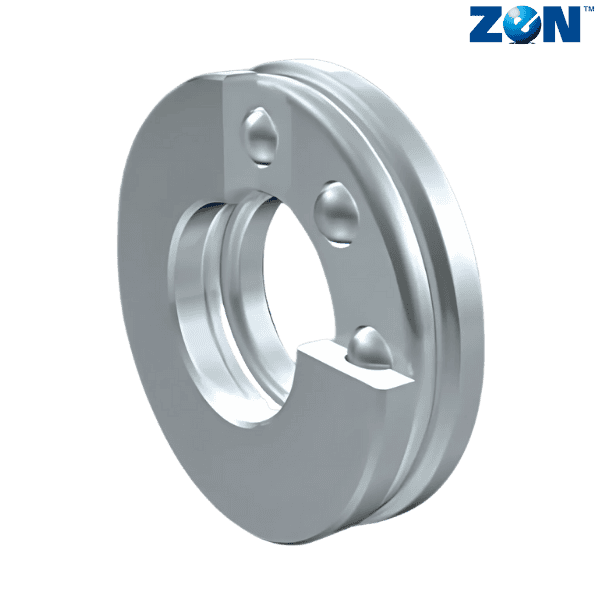

** Images are for representation purposes only
