Description
Brand - FAG
Item Number - 512/1000-MP FAG

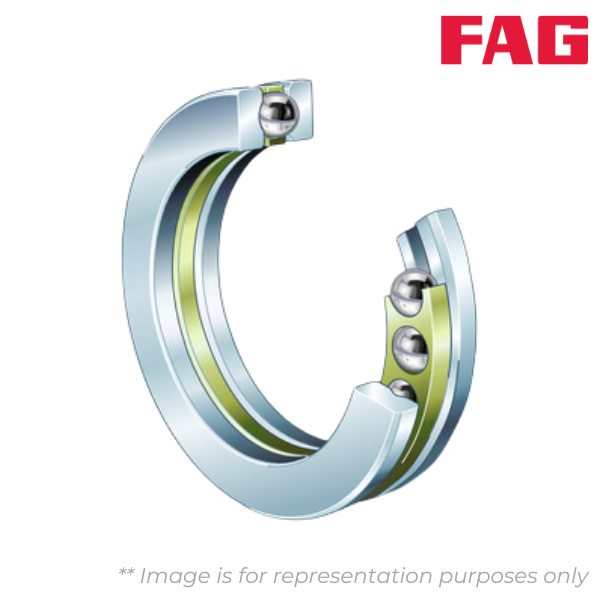

Category - Axial Deep Groove Ball Bearing
Weight (Kg) - 998

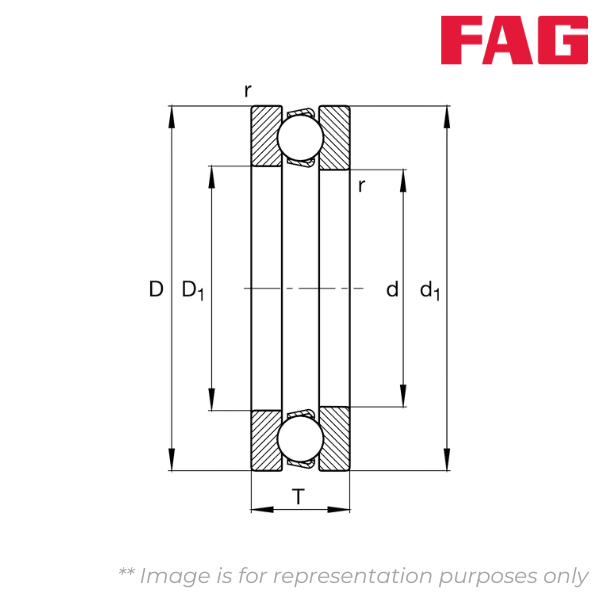

Inner Diameter Shaft Washer (d) mm - 1000
Outer Diameter Housing Washer (D) mm - 1320
Height (T) mm - 250
Inner Diameter Housing Washer (D1) mm - 1005
Outer Diameter Shaft Washer (d1) mm - 1315
Minimum Chamfer Dimension (r) mm - 9.5

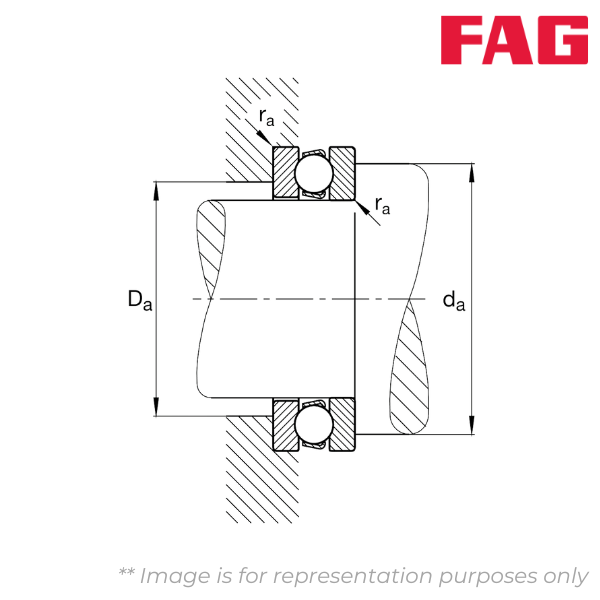

Minimum Diameter of Shaft Shoulder (da) mm - 1192
Maximum Diameter of Housing Shoulder (Da) mm - 1128
Maximum Fillet Radius (ra) mm - 8
Basic Dynamic Load Rating, Axial(Ca) kN - 2550
Basic Static Load Rating, Axial (C0a) kN - 24000
Fatigue Limit Load, Axial (Cua) kN - 315
Minimum Load Factor (A) - 3000
Limiting Speed (nG) rpm - 220
