482 - 472-B TIMKEN

Brand - TIMKEN
Item Number - 482 - 472-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 69.85
Bore Diameter (d) inch - 2.75
Outer Diameter (D) mm - 120
Outer Diameter (D) inch - 4.7244
Bearing Width to Flange (T1) mm - 11.095
Bearing Width to Flange (T1) inch - 0.4368
Static Radial Rating (C0) kN - 186
Static Radial Rating (C0) lbs - 41900
Dynamic Radial Rating (1 million revolutions) (C1) kN - 133
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 29900
Dynamic Radial Rating (90 million revolutions) (C90) kN - 34.4
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 7740
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 22.7
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 5100
Flange Outer Diameter (D1) mm - 125.4
Flange Outer Diameter (D1) inch - 4.94
Flange Width (C2) mm - 5.5
Flange Width (C2) inch - 0.22
Cone Width (B) mm - 29.007
Cone Width (B) inch - 1.142
Cup Width (C) mm - 24.237
Cup Width (C) inch - 0.9542
Effective Center Location (a) mm - -4.1
Effective Center Location (a) inch - -0.16
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.5
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 77
Cone Frontface Backing Diameter (da) inch - 3.03
Cone Backface Backing Diameter (db) mm - 83
Cone Backface Backing Diameter (db) inch - 3.27
Maximum Housing Fillet Radius at Cup Backface (r) mm - 0.8
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 115
Cup Frontface Backing Diameter (Da) inch - 4.53
Cup Backface Backing Diameter (Db) mm - 108
Cup Backface Backing Diameter (Db) inch - 4.25
Stiffness (Kr10^6) N/mm - 2.08
Stiffness (Kr10^6) lbs/in - 11.9
Stiffness (Fr) kN - 3.4
Stiffness (Fr) lbs - 774
Stiffness (Ka10) N/mm - 0.261
Stiffness (Ka10) lbs/in - 1.49
Stiffness (Fa) kN - 2.3
Stiffness (Fa) lbs - 510
Speed Rating (RPM) - 4300
Weight (kg) - 1.36
Weight (lbs) - 2.99

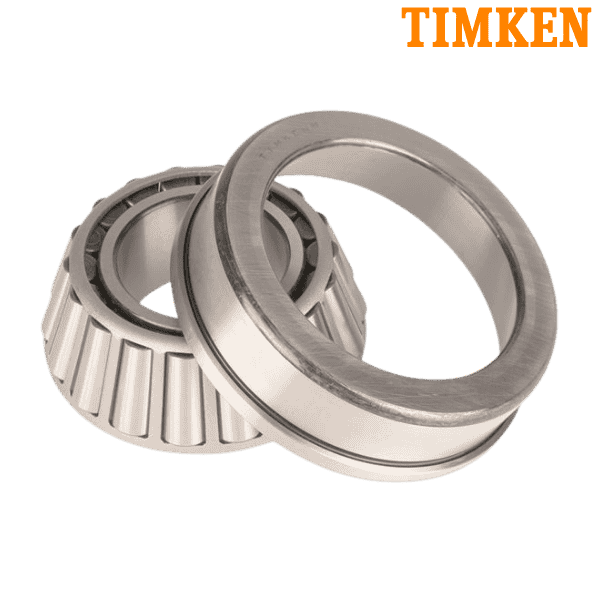

** Images are for representation purposes only
