47890/47825-B TIMKEN

Brand - TIMKEN
Item Number - 47890/47825-B TIMKEN
Also Known As - 47890 - 47825-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 92.075
Bore Diameter (d) inch - 3.625
Outer Diameter (D) mm - 142.875
Outer Diameter (D) inch - 5.625
Width (T1) mm - 15.08
Width (T1) inch - 0.5937
Dynamic Load Rating (C1) N - 197000
Dynamic Load Rating (C1) lbf - 44300
Factor (e) - 0.45
Factor (Y) - 1.34
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 51100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 11500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 39200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8810
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.3
Basic Static Radial Load Rating (C0) N - 307000
Basic Static Radial Load Rating (C0) lbf - 69000
Cone Width (B) mm - 34.925
Cone Width (B) inch - 1.375
Cup Width (C) mm - 26.195
Cup Width (C) inch - 1.0313
Effective Center Location (a) mm - -1
Effective Center Location (a) inch - -0.04
Outer Diameter of Outer Ring Flange (D1) mm - 149.123
Outer Diameter of Outer Ring Flange (D1) inch - 5.871
Flange Width (C2) mm - 7.938
Flange Width (C2) inch - 0.3125
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 101
Cone Frontface Backing Diameter (da) inch - 3.98
Cone Backface Backing Diameter (db) mm - 107
Cone Backface Backing Diameter (db) inch - 4.21
Cup Frontface Backing Diameter (Da) mm - 142
Cup Frontface Backing Diameter (Da) inch - 5.59
Geometry Factor (G1) - 153.2
Geometry Factor (G2) - 38.1
Geometry Factor (Cg) - 0.1428
Weight (kg) - 2.01
Weight (lbs) - 4.43
Inner Part Number - 47890
Outer Part Number - 47825-B

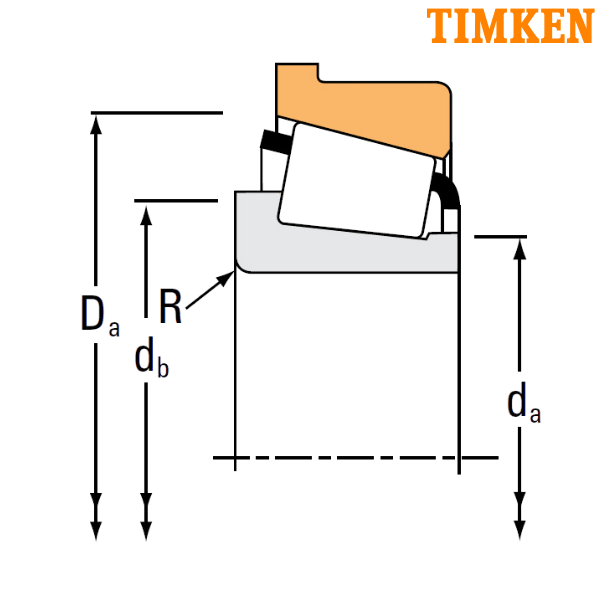

TSF - Single-Row Bearing with a Flange on the Outer Ring
