477-12021 RBC

Brand - RBC
Item Number - 477-12021 RBC
Category - LW Titanium Bearings

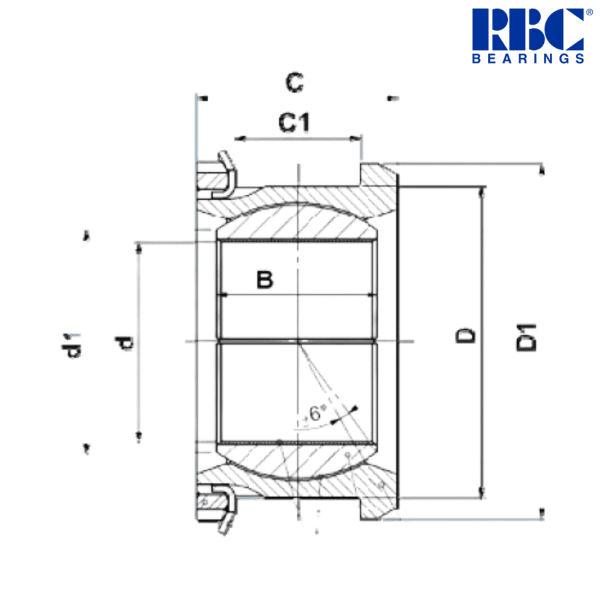

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 57.15 mm
Dimension (d1) - 64.66 mm
Outer Diameter (D) - 87.31 mm
Dimension (D1) - 95.25 mm
Width (B) - 46.04 mm
Dimension (C) - 57.15 mm
Dimension (C1) - 42.87 mm
Dynamic Load Rating - 348100 N
Weight with Titanium - 1.131 kg
Weight Saving vs. Steel - 0.874 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 2.25 inch
Dimension (d1) - 2.546 inch
Outer Diameter (D) - 3.438 inch
Dimension (D1) - 3.75 inch
Width (B) - 1.813 inch
Dimension (C) - 2.25 inch
Dimension (C1) - 1.688 inch
Dynamic Load Rating - 78256 lbf
Weight with Titanium - 2.493 lb
Weight Saving vs. Steel - 1.927 lb

♦ ♦ Images are for representation purposes only
