477-12020 RBC

Brand - RBC
Item Number - 477-12020 RBC
Category - LW Titanium Bearings

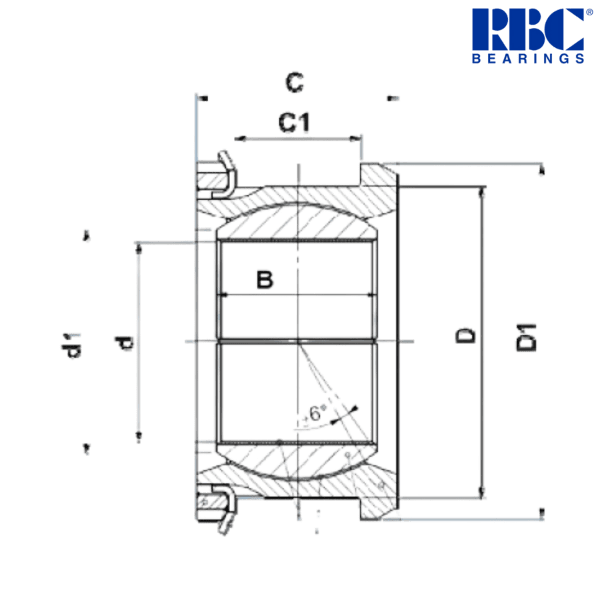

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 50.8 mm
Dimension (d1) - 58.31 mm
Outer Diameter (D) - 79.38 mm
Dimension (D1) - 87.31 mm
Width (B) - 40.28 mm
Dimension (C) - 50.8 mm
Dimension (C1) - 36.51 mm
Dynamic Load Rating - 275700 N
Weight with Titanium - 0.847 kg
Weight Saving vs. Steel - 0.655 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 2 inch
Dimension (d1) - 2.296 inch
Outer Diameter (D) - 3.125 inch
Dimension (D1) - 3.438 inch
Width (B) - 1.586 inch
Dimension (C) - 2 inch
Dimension (C1) - 1.438 inch
Dynamic Load Rating - 61980 lbf
Weight with Titanium - 1.867 lb
Weight Saving vs. Steel - 1.443 lb

♦ ♦ Images are for representation purposes only
