477-12019 RBC

Brand - RBC
Item Number - 477-12019 RBC
Category - LW Titanium Bearings

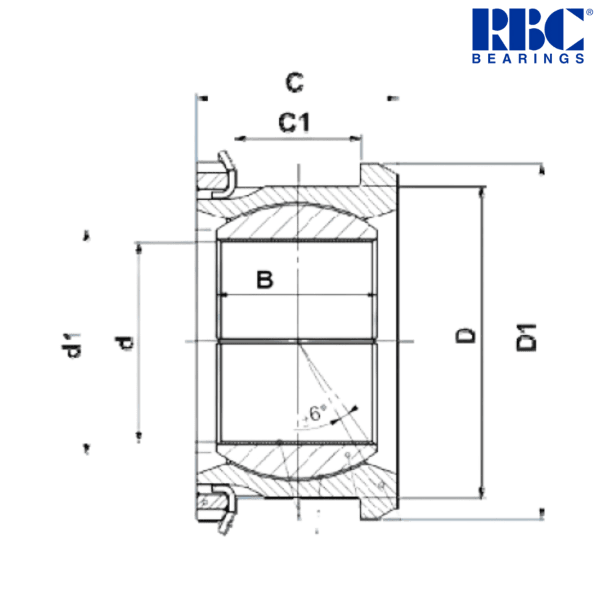

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 47.63 mm
Dimension (d1) - 54.72 mm
Outer Diameter (D) - 73.03 mm
Dimension (D1) - 80.96 mm
Width (B) - 38.1 mm
Dimension (C) - 47.63 mm
Dimension (C1) - 34.93 mm
Dynamic Load Rating - 245900 N
Weight with Titanium - 0.66 kg
Weight Saving vs. Steel - 0.51 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.875 inch
Dimension (d1) - 2.154 inch
Outer Diameter (D) - 2.875 inch
Dimension (D1) - 3.188 inch
Width (B) - 1.5 inch
Dimension (C) - 1.875 inch
Dimension (C1) - 1.375 inch
Dynamic Load Rating - 55281 lbf
Weight with Titanium - 1.455 lb
Weight Saving vs. Steel - 1.124 lb

♦ ♦ Images are for representation purposes only
