477-12018 RBC

Brand - RBC
Item Number - 477-12018 RBC
Category - LW Titanium Bearings

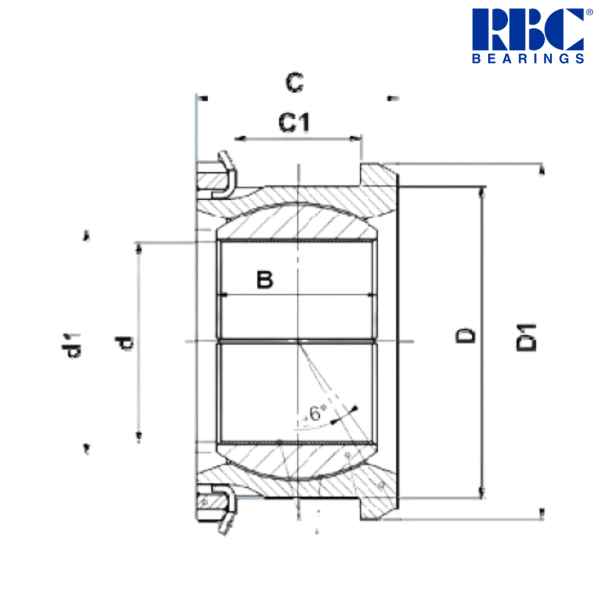

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 44.45 mm
Dimension (d1) - 50 mm
Outer Diameter (D) - 68.26 mm
Dimension (D1) - 76.2 mm
Width (B) - 36.51 mm
Dimension (C) - 46.04 mm
Dimension (C1) - 33.34 mm
Dynamic Load Rating - 217200 N
Weight with Titanium - 0.554 kg
Weight Saving vs. Steel - 0.428 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.75 inch
Dimension (d1) - 1.969 inch
Outer Diameter (D) - 2.688 inch
Dimension (D1) - 3 inch
Width (B) - 1.438 inch
Dimension (C) - 1.813 inch
Dimension (C1) - 1.313 inch
Dynamic Load Rating - 48828 lbf
Weight with Titanium - 1.221 lb
Weight Saving vs. Steel - 0.944 lb

♦ ♦ Images are for representation purposes only
