477-12017 RBC

Brand - RBC
Item Number - 477-12017 RBC
Category - LW Titanium Bearings

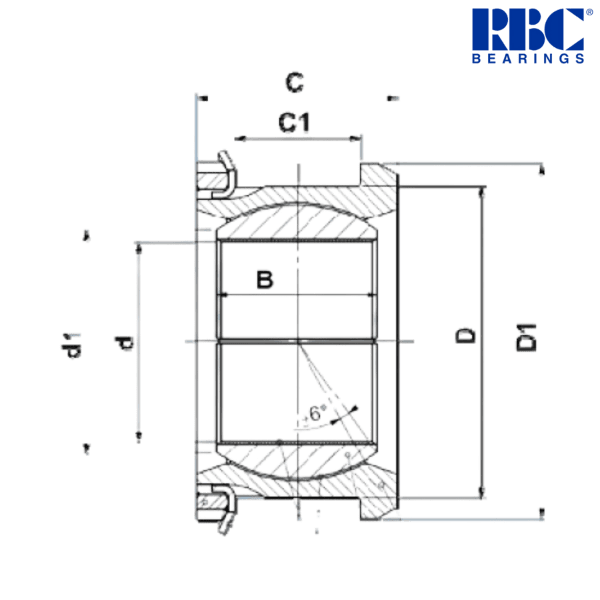

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 41.28 mm
Dimension (d1) - 48.36 mm
Outer Diameter (D) - 65.09 mm
Dimension (D1) - 71.44 mm
Width (B) - 33.34 mm
Dimension (C) - 41.28 mm
Dimension (C1) - 28.58 mm
Dynamic Load Rating - 185500 N
Weight with Titanium - 0.47 kg
Weight Saving vs. Steel - 0.363 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.625 inch
Dimension (d1) - 1.904 inch
Outer Diameter (D) - 2.563 inch
Dimension (D1) - 2.813 inch
Width (B) - 1.313 inch
Dimension (C) - 1.625 inch
Dimension (C1) - 1.125 inch
Dynamic Load Rating - 41702 lbf
Weight with Titanium - 1.036 lb
Weight Saving vs. Steel - 0.801 lb

♦ ♦ Images are for representation purposes only
