477-12015 RBC

Brand - RBC
Item Number - 477-12015 RBC
Category - LW Titanium Bearings

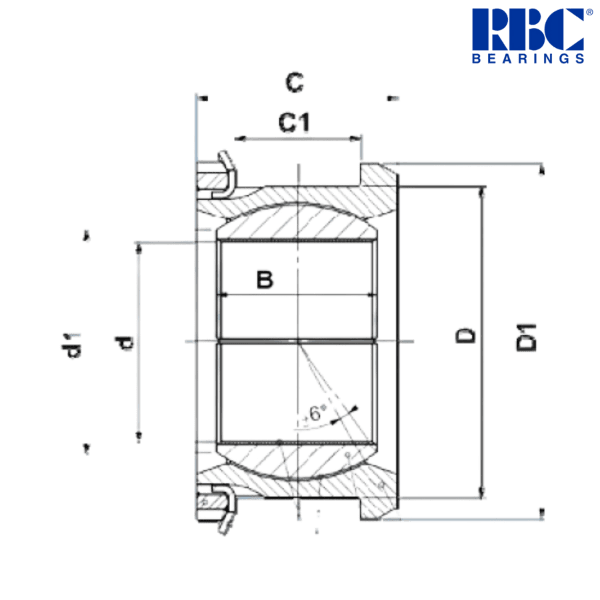

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 34.93 mm
Dimension (d1) - 40.07 mm
Outer Diameter (D) - 55.56 mm
Dimension (D1) - 63.5 mm
Width (B) - 26.99 mm
Dimension (C) - 33.34 mm
Dimension (C1) - 22.23 mm
Dynamic Load Rating - 129400 N
Weight with Titanium - 0.295 kg
Weight Saving vs. Steel - 0.228 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.375 inch
Dimension (d1) - 1.578 inch
Outer Diameter (D) - 2.188 inch
Dimension (D1) - 2.5 inch
Width (B) - 1.063 inch
Dimension (C) - 1.313 inch
Dimension (C1) - 0.875 inch
Dynamic Load Rating - 29090 lbf
Weight with Titanium - 0.65 lb
Weight Saving vs. Steel - 0.503 lb

♦ ♦ Images are for representation purposes only
