477-12014 RBC

Brand - RBC
Item Number - 477-12014 RBC
Category - LW Titanium Bearings

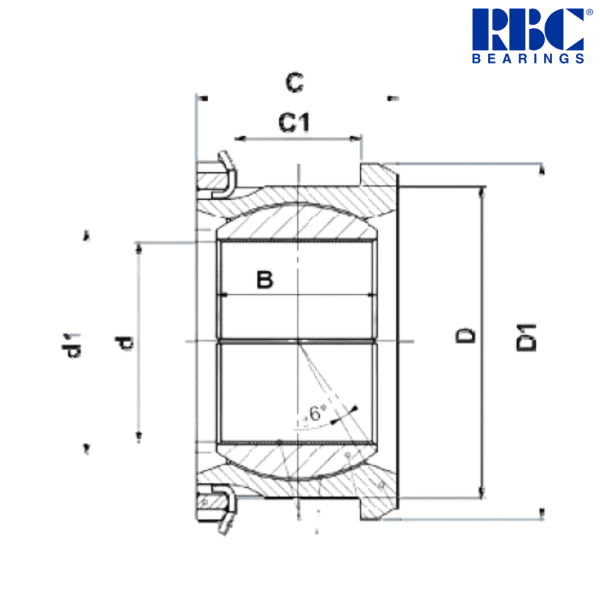

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 31.75 mm
Dimension (d1) - 36.48 mm
Outer Diameter (D) - 50.8 mm
Dimension (D1) - 57.15 mm
Width (B) - 25.4 mm
Dimension (C) - 31.75 mm
Dimension (C1) - 20.64 mm
Dynamic Load Rating - 109100 N
Weight with Titanium - 0.228 kg
Weight Saving vs. Steel - 0.176 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.25 inch
Dimension (d1) - 1.436 inch
Outer Diameter (D) - 2 inch
Dimension (D1) - 2.25 inch
Width (B) - 1 inch
Dimension (C) - 1.25 inch
Dimension (C1) - 0.813 inch
Dynamic Load Rating - 24527 lbf
Weight with Titanium - 0.503 lb
Weight Saving vs. Steel - 0.388 lb

♦ ♦ Images are for representation purposes only
