477-12013 RBC

Brand - RBC
Item Number - 477-12013 RBC
Category - LW Titanium Bearings

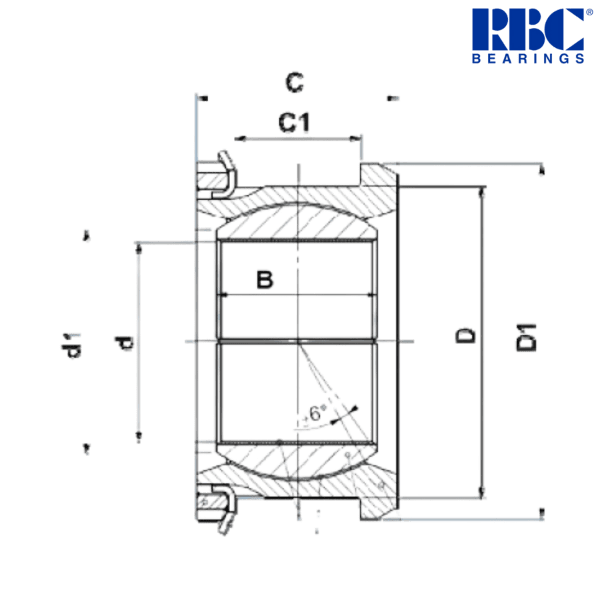

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 28.58 mm
Dimension (d1) - 32.86 mm
Outer Diameter (D) - 46.04 mm
Dimension (D1) - 53.98 mm
Width (B) - 22.25 mm
Dimension (C) - 28.58 mm
Dimension (C1) - 17.46 mm
Dynamic Load Rating - 83500 N
Weight with Titanium - 0.175 kg
Weight Saving vs. Steel - 0.135 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.125 inch
Dimension (d1) - 1.294 inch
Outer Diameter (D) - 1.813 inch
Dimension (D1) - 2.125 inch
Width (B) - 0.876 inch
Dimension (C) - 1.125 inch
Dimension (C1) - 0.688 inch
Dynamic Load Rating - 18772 lbf
Weight with Titanium - 0.386 lb
Weight Saving vs. Steel - 0.298 lb

♦ ♦ Images are for representation purposes only
