477-12012 RBC

Brand - RBC
Item Number - 477-12012 RBC
Category - LW Titanium Bearings

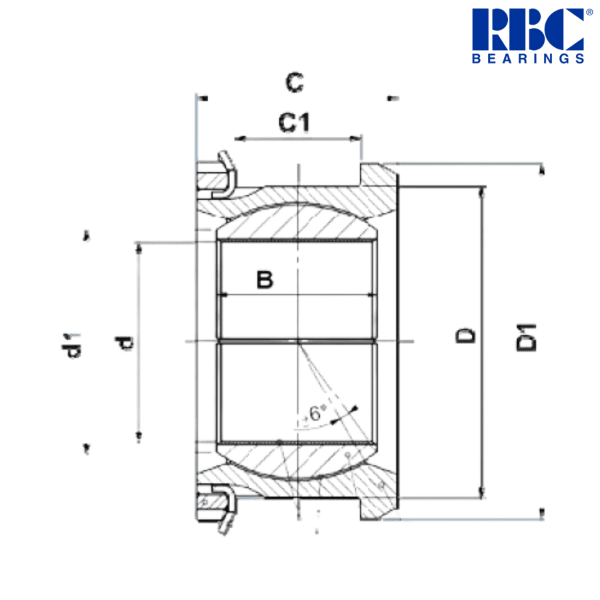

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 25.4 mm
Dimension (d1) - 30.12 mm
Outer Diameter (D) - 41.28 mm
Dimension (D1) - 49.21 mm
Width (B) - 20.64 mm
Dimension (C) - 25.4 mm
Dimension (C1) - 14.29 mm
Dynamic Load Rating - 70400 N
Weight with Titanium - 0.133 kg
Weight Saving vs. Steel - 0.103 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1 inch
Dimension (d1) - 1.186 inch
Outer Diameter (D) - 1.625 inch
Dimension (D1) - 1.938 inch
Width (B) - 0.813 inch
Dimension (C) - 1 inch
Dimension (C1) - 0.563 inch
Dynamic Load Rating - 15827 lbf
Weight with Titanium - 0.293 lb
Weight Saving vs. Steel - 0.227 lb
