462/453-B TIMKEN

Brand - TIMKEN
Item Number - 462/453-B TIMKEN
Also Known As - 462 - 453-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 57.15
Bore Diameter (d) inch - 2.25
Outer Diameter (D) mm - 107.95
Outer Diameter (D) inch - 4.25
Width (T1) mm - 11.115
Width (T1) inch - 0.4376
Dynamic Load Rating (C1) N - 161000
Dynamic Load Rating (C1) lbf - 36100
Factor (e) - 0.34
Factor (Y) - 1.79
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 41700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 9370
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 23900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5380
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.74
Basic Static Radial Load Rating (C0) N - 166000
Basic Static Radial Load Rating (C0) lbf - 37200
Cone Width (B) mm - 29.317
Cone Width (B) inch - 1.1542
Cup Width (C) mm - 22.225
Cup Width (C) inch - 0.875
Effective Center Location (a) mm - -7.1
Effective Center Location (a) inch - -0.28
Outer Diameter of Outer Ring Flange (D1) mm - 113.386
Outer Diameter of Outer Ring Flange (D1) inch - 4.464
Flange Width (C2) mm - 5.558
Flange Width (C2) inch - 0.2188
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Cone Frontface Backing Diameter (da) mm - 63
Cone Frontface Backing Diameter (da) inch - 2.48
Cone Backface Backing Diameter (db) mm - 67
Cone Backface Backing Diameter (db) inch - 2.64
Cup Frontface Backing Diameter (Da) mm - 100
Cup Frontface Backing Diameter (Da) inch - 3.94
Geometry Factor (G1) - 58.6
Geometry Factor (G2) - 17.1
Geometry Factor (Cg) - 0.0946
Weight (kg) - 1.14
Weight (lbs) - 2.5
Inner Part Number - 462
Outer Part Number - 453-B

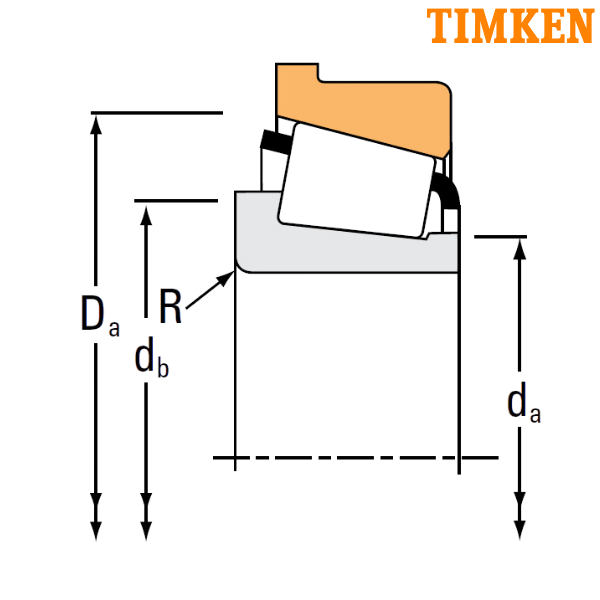

TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
