4590 CPM

Brand - CPM
Part Number - 4590 CPM
Category - Geared Slewing Bearing

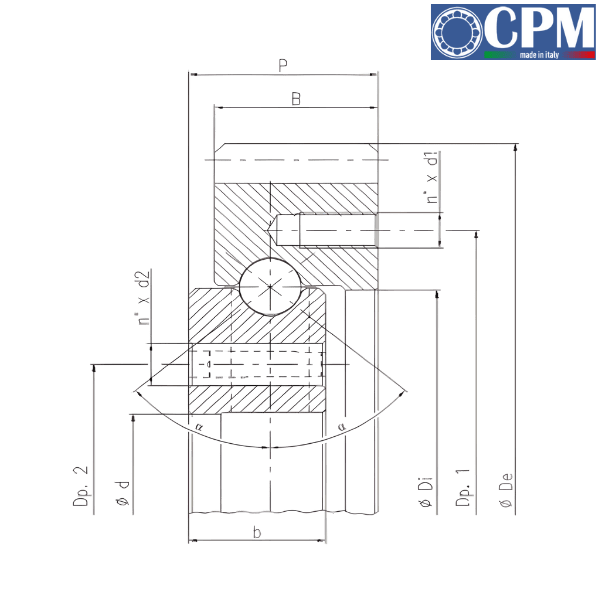

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 110 mm
Outer Diameter (De) - 232.5 mm
Dimension (Di) - 169 mm
Width (B) - 23 mm
Dimension (b) - 23 mm
Dimension (P) - 25 mm
Dimension (Dp.1) - 195 mm
Dimension (Dp.2) - 130 mm
Dimension (n° × d1) - 6 × M8
Dimension (n° × d2) - 8 × 8.5
Angle (α) - 35°
Basic Dynamic Load Rating (Ca) - 48.1 kN
Basic Static Load Rating (Coa) - 190.1 kN

♦♦ Images are for representation purposes only
