Description
Brand - DODGE

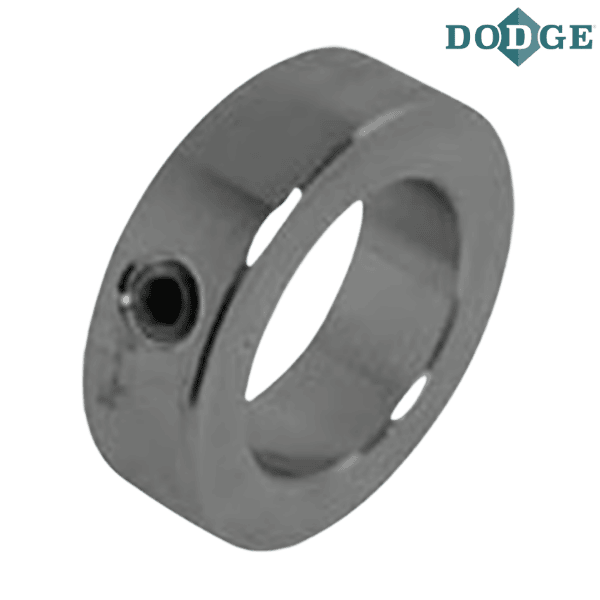

Item Number - 456238 DODGE - 1 3/4 SOLID S.S. COLLAR
Category - Shaft Collar (Solid Stainless Steel)
Shaft Size (inch) - 1.75
Description - 1 3/4 SOLID S.S. COLLAR
Part Number (Steel) - 40027
Description (Steel) - 1 7/8 SOLID STEEL COLLAR

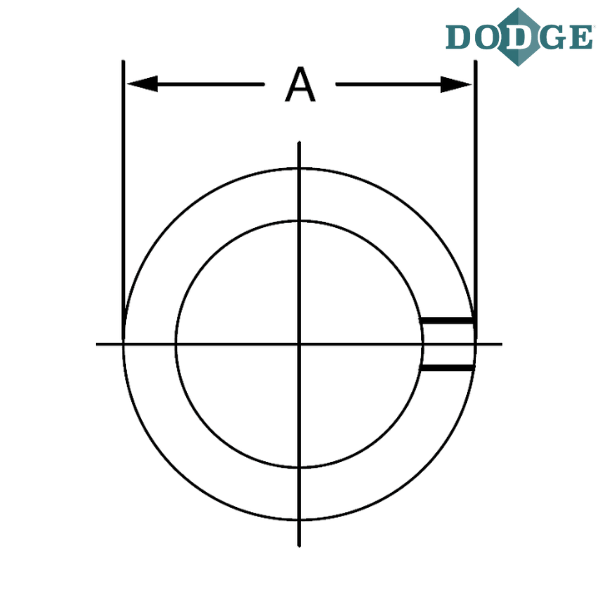

Outer Diameter (A) inch - 2.75

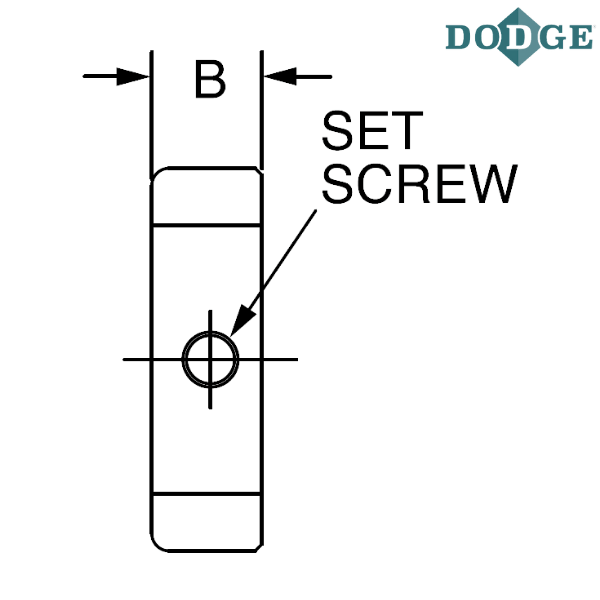

Width (B) inch - 0.88
Screw (inch) - 0.5
Weight (lbs) - 0.8
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
