Description
Brand - DODGE

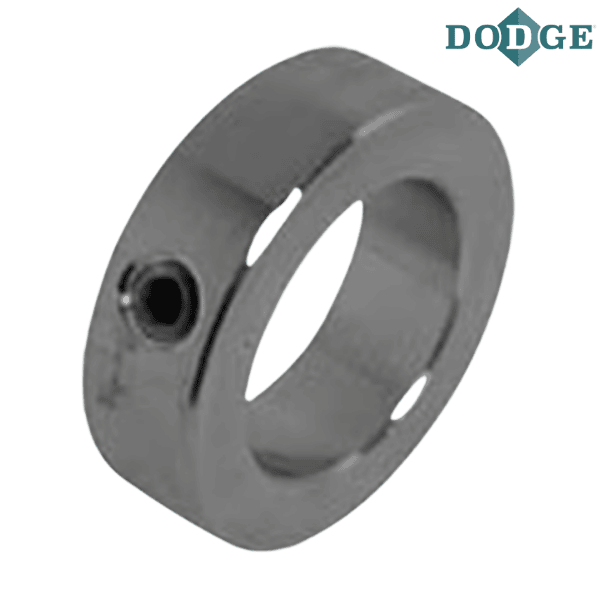

Item Number - 456232 DODGE - 3/4 SOLID S.S. COLLAR
Category - Shaft Collar (Solid Stainless Steel)
Shaft Size (inch) - 0.75
Description - 3/4 SOLID S.S. COLLAR
Part Number (Steel) - 40011
Description (Steel) - 13/16 SOLID STEEL COLLAR

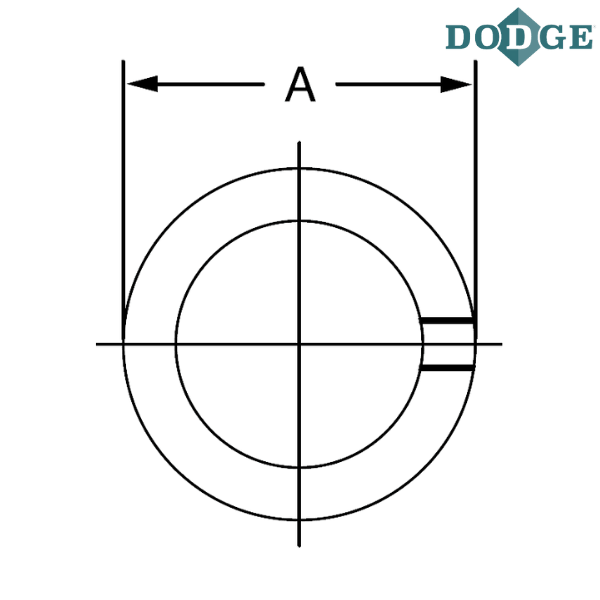

Outer Diameter (A) inch - 1.25

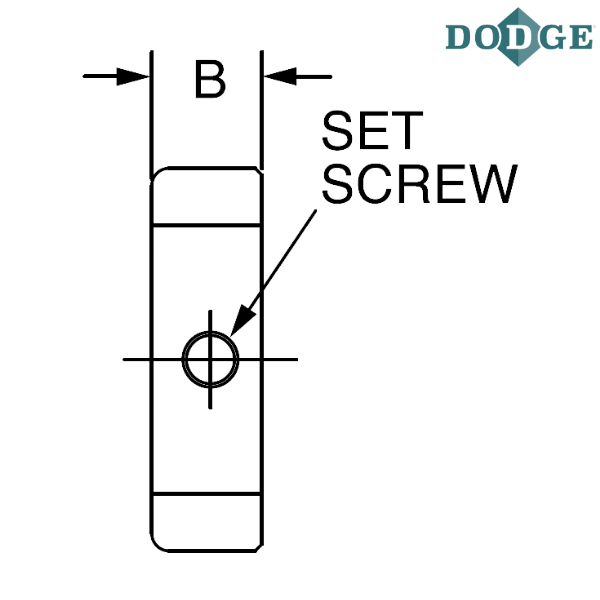

Width (B) inch - 0.56
Screw (inch) - 0.3125
Weight (lbs) - 0.1
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
