Description
Brand - DODGE

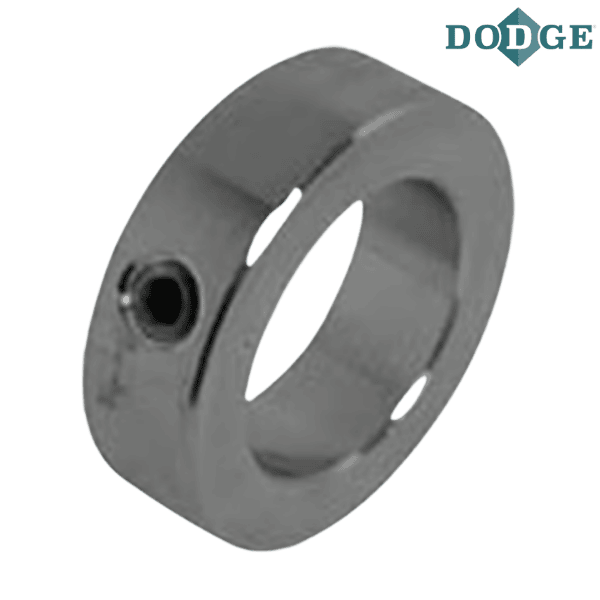

Item Number - 456225 DODGE - 1/8 SOLID S.S. COLLAR
Category - Shaft Collar (Solid Stainless Steel)
Shaft Size (inch) - 0.125
Description - 1/8 SOLID S.S. COLLAR
Part Number (Steel) - 40001
Description (Steel) - 3/16 SOLID STEEL COLLAR

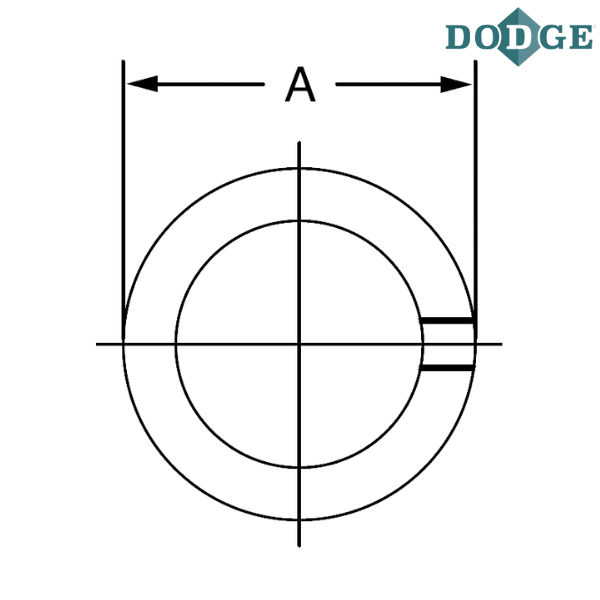

Outer Diameter (A) inch - 0.36

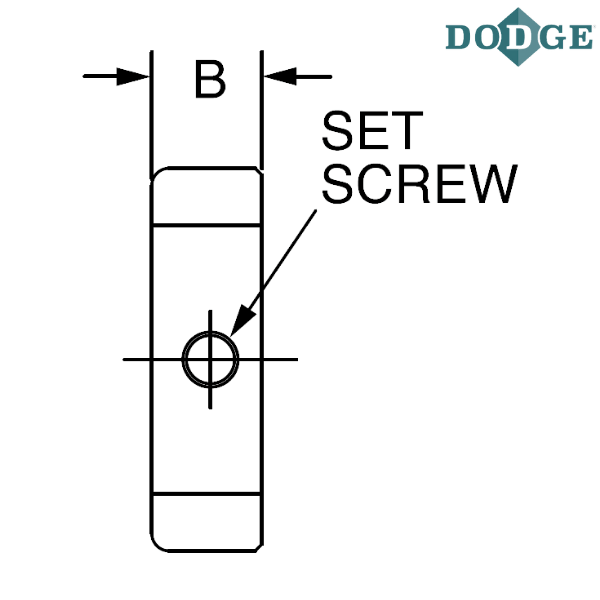

Width (B) inch - 0.25
Screw (inch) - 6
Weight (lbs) - 0.01
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
