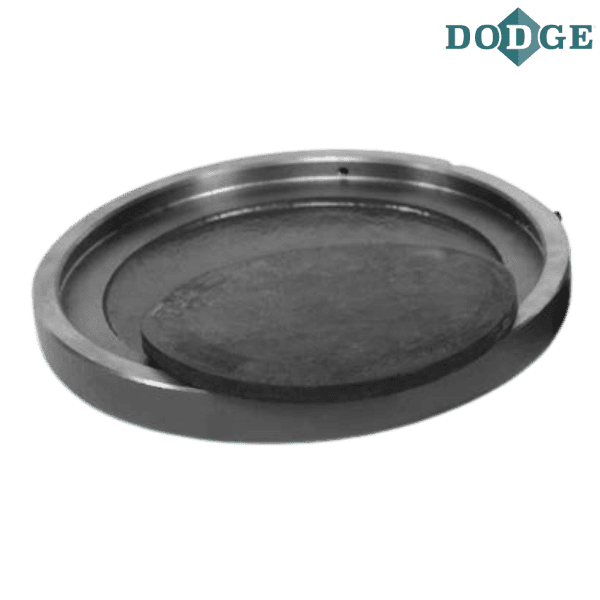

432196 DODGE - 4 15/16 SLV HOUSING END CAP KIT

Brand - DODGE
Item Number - 432196 DODGE - 4 15/16 SLV HOUSING END CAP KIT
Category - End Cup Kits (Sleeveoil Accessories)
Description - 4 15/16 SLV HOUSING END CAP KIT

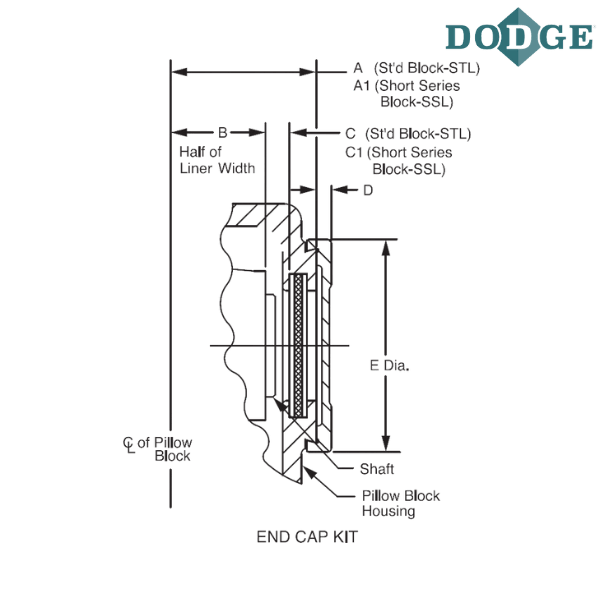

Bore Size (inch) - 4.9375
Pillow Block Style - PLXC, STL and SSL
Weight (lbs) - 7.3
D (inch) - 0.5
E (inch) - 9.125
For STL Style Pillow Block Dimension of A (inch) - 9.125
For SSL Style Pillow Block Dimension of A1 (inch) - 6.875
B (inch) * - 5
For STL Style Pillow Block Dimension of C (inch) * - 3.09375
For SSL Style Pillow Block Dimension of C1 (inch) * - 0.84375

For RTL Style Pillow Block :
A (inch) - 6.375
B (inch) * - 4.4375
C (inch) * - 1.09375

* B+C (OR B+C1) = max. shaft penetration from center line of pillow block

** Images are for representation purposes only
