Description
Brand - FAG
Item Number - 4312-B-TVH FAG
Category - Deep Groove Ball Bearing Double Row

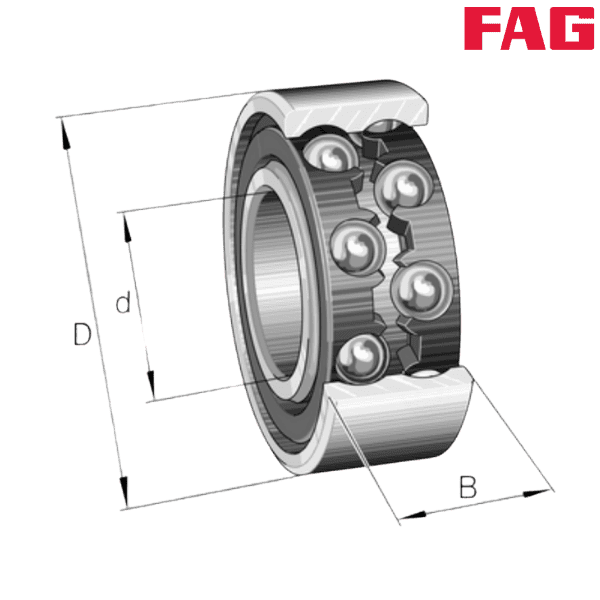

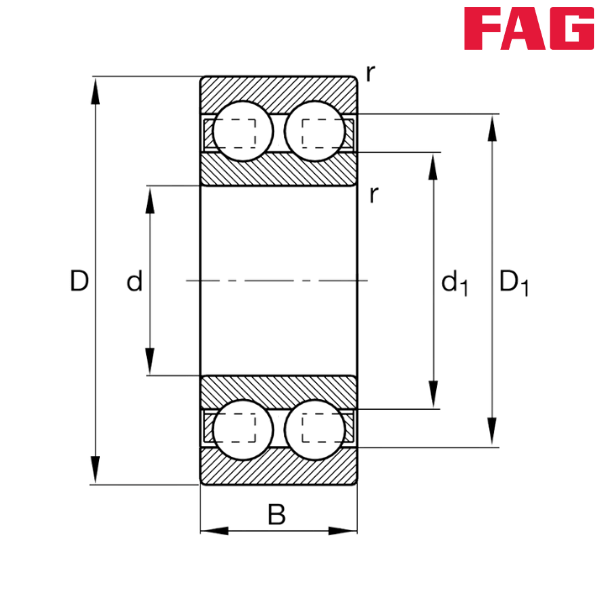

Bore Diameter (d) mm - 60
Outside Diameter (D) mm - 130
Width (B) mm - 46
Basic Dynamic Load Rating (Cr) N - 128000
Basic Static Load Rating (C0r) N - 106000
Fatigue Load Limit, Radial (Cur) N - 6400
Limiting Speed (nG) min–1 - 3950
Calculation Factor (f0) - 13.8
Weight (m) Kg - 2.58
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Inner Ring (d1) mm - 87.7

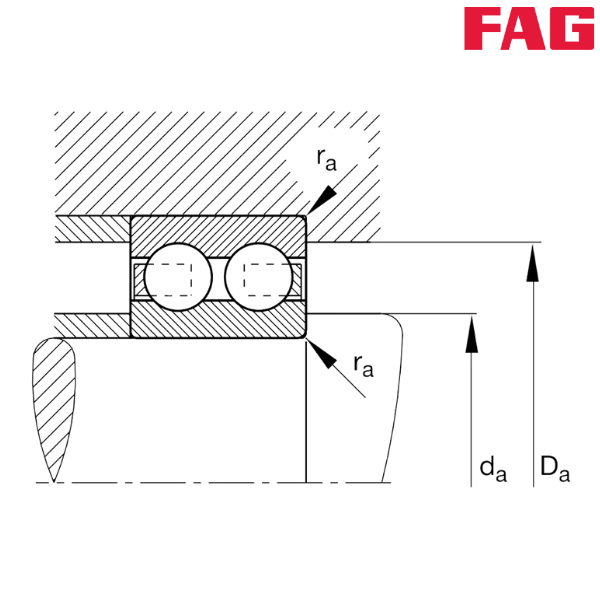

Minimum Diameter Shaft Shoulder (da) mm - 72
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
B - Modified Internal Construction
** Images are for representation purposes only
