Description
Brand - FAG
Item Number - 4310-B-TVH FAG
Category - Deep Groove Ball Bearing Double Row
Bore Diameter (d) mm - 50
Outside Diameter (D) mm - 110
Width (B) mm - 40
Basic Dynamic Load Rating (Cr) N - 92000
Basic Static Load Rating (C0r) N - 76000
Fatigue Load Limit, Radial (Cur) N - 4600
Limiting Speed (nG) min–1 - 4800
Calculation Factor (f0) - 13.8
Weight (m) Kg - 1.62

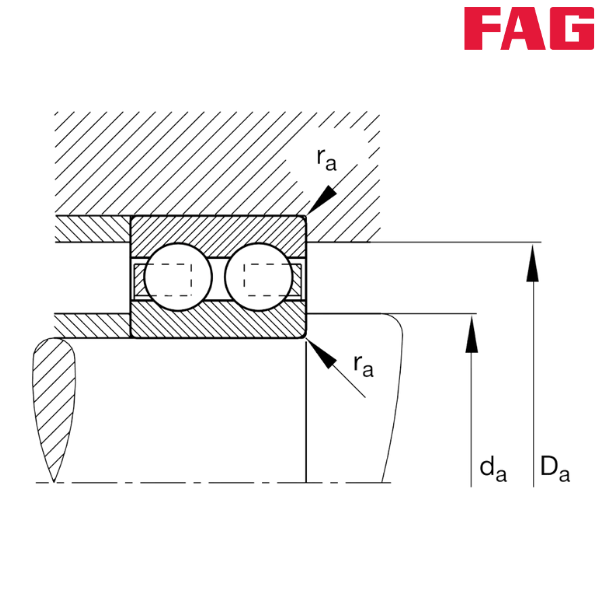

Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Inner Ring (d1) mm - 73.6
Minimum Diameter Shaft Shoulder (da) mm - 61
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
B - Modified Internal Construction
** Images are for representation purposes only
