42375/42584 TIMKEN

Brand - TIMKEN
Item Number - 42375/42584 TIMKEN
Also Known As - 42375 - 42584
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 95.25
Bore Diameter (d) inch - 3.75
Outer Diameter (D) mm - 148.43
Outer Diameter (D) inch - 5.8437
Width (T) mm - 28.575
Width (T) inch - 1.125
Dynamic Load Rating (C1) N - 193000
Dynamic Load Rating (C1) lbf - 43400
Factor (e) - 0.49
Factor (Y) - 1.22
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 50100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 11300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 42200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9480
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.19
Basic Static Radial Load Rating (C0) N - 241000
Basic Static Radial Load Rating (C0) lbf - 54300
Cone Width (B) mm - 28.971
Cone Width (B) inch - 1.1406
Cup Width (C) mm - 21.433
Cup Width (C) inch - 0.8438
Effective Center Location (a) mm - 3
Effective Center Location (a) inch - 0.12
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 103
Cone Frontface Backing Diameter (da) inch - 4.06
Cone Backface Backing Diameter (db) mm - 108
Cone Backface Backing Diameter (db) inch - 4.25
Max Housing Fillet Radius (r) mm - 3
Max Housing Fillet Radius (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 142
Cup Frontface Backing Diameter (Da) inch - 5.59
Cup Backface Backing Diameter (Db) mm - 134
Cup Backface Backing Diameter (Db) inch - 5.28
Cage-Cone Backface Clearance (Aa) mm - 2.8
Cage-Cone Backface Clearance (Aa) inch - 0.11
Cage-Cone Frontface Clearance (Ab) mm - 3
Cage-Cone Frontface Clearance (Ab) inch - 0.12
Geometry Factor (G1) - 129.7
Geometry Factor (G2) - 37.2
Geometry Factor (Cg) - 0.1386
Weight (kg) - 1.73
Weight (lbs) - 3.81
Inner Part Number - 42375
Outer Part Number - 42584

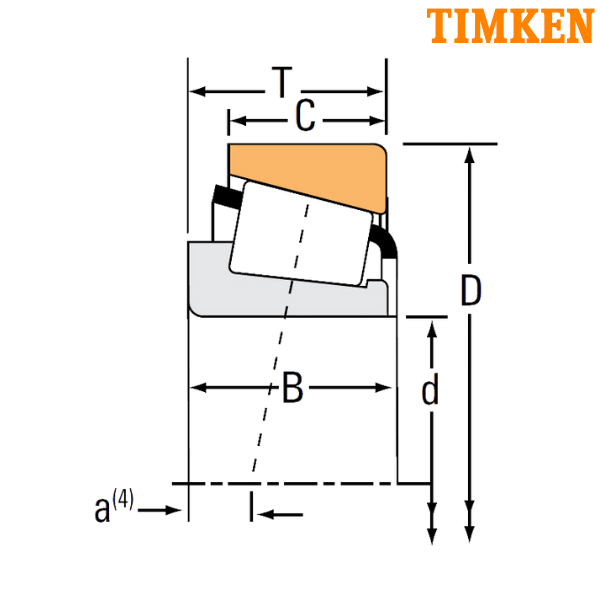

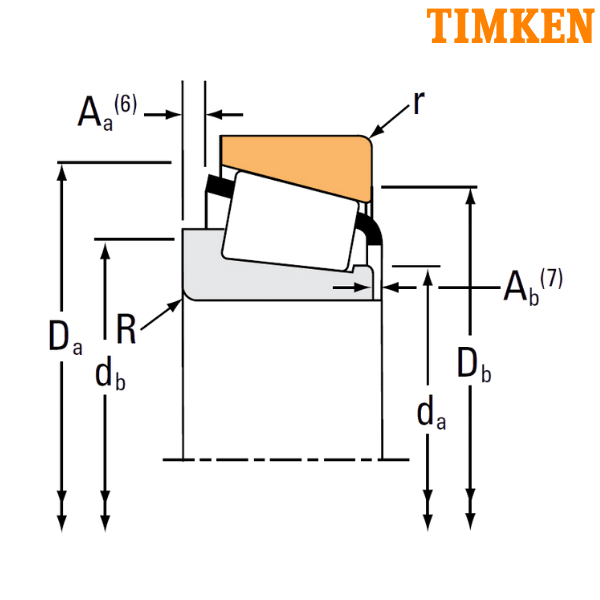

TS - Single Row Tapered Roller Bearing

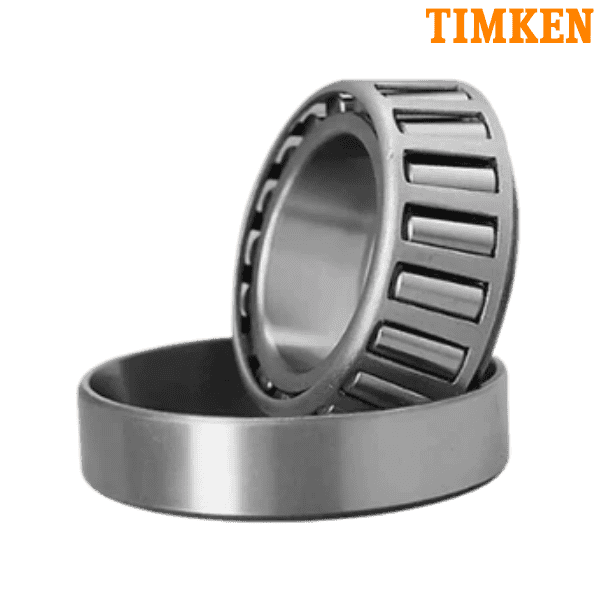

** Images are for representation purposes only
