42368/42587-B TIMKEN

Brand - TIMKEN
Item Number - 42368/42587-B TIMKEN
Also Known As - 42368 - 42587-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 93.662
Bore Diameter (d) inch - 3.6875
Outer Diameter (D) mm - 149.225
Outer Diameter (D) inch - 5.875
Width (T1) mm - 12.7
Width (T1) inch - 0.5
Dynamic Load Rating (C1) N - 193000
Dynamic Load Rating (C1) lbf - 43400
Factor (e) - 0.49
Factor (Y) - 1.22
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 50100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 11300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 42200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9480
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.19
Basic Static Radial Load Rating (C0) N - 241000
Basic Static Radial Load Rating (C0) lbf - 54300
Cone Width (B) mm - 28.971
Cone Width (B) inch - 1.1406
Cup Width (C) mm - 24.608
Cup Width (C) inch - 0.9688
Effective Center Location (a) mm - 3
Effective Center Location (a) inch - 0.12
Outer Diameter of Outer Ring Flange (D1) mm - 154.681
Outer Diameter of Outer Ring Flange (D1) inch - 6.0898
Flange Width (C2) mm - 5.558
Flange Width (C2) inch - 0.2188
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 102
Cone Frontface Backing Diameter (da) inch - 4.02
Cone Backface Backing Diameter (db) mm - 107
Cone Backface Backing Diameter (db) inch - 4.21
Cup Frontface Backing Diameter (Da) mm - 152
Cup Frontface Backing Diameter (Da) inch - 5.98
Geometry Factor (G1) - 129.7
Geometry Factor (G2) - 37.2
Geometry Factor (Cg) - 0.1386
Weight (kg) - 1.99
Weight (lbs) - 4.38
Inner Part Number - 42368
Outer Part Number - 42587-B

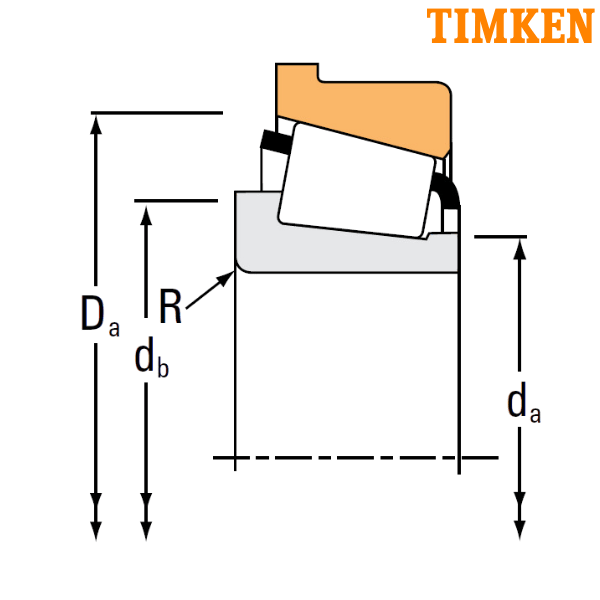

TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
