42362/42584 TIMKEN

Brand - TIMKEN
Item Number - 42362/42584 TIMKEN
Also Known As - 42362 - 42584
Category - Single Row Tapered Roller Bearing (TS Type)

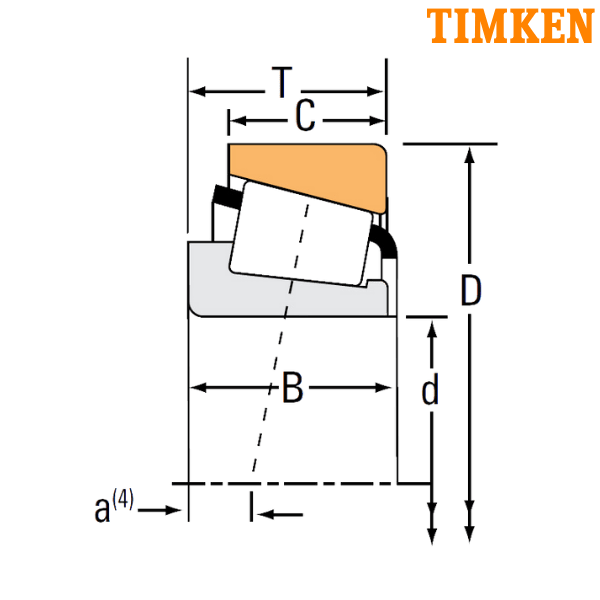

Bore Diameter (d) mm - 92.075
Bore Diameter (d) inch - 3.625
Outer Diameter (D) mm - 148.43
Outer Diameter (D) inch - 5.8437
Width (T) mm - 28.575
Width (T) inch - 1.125
Dynamic Load Rating (C1) N - 163000
Dynamic Load Rating (C1) lbf - 36600
Factor (e) - 0.49
Factor (Y) - 1.22
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 42200
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 9490
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 35600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.19
Basic Static Radial Load Rating (C0) N - 241000
Basic Static Radial Load Rating (C0) lbf - 54300
Cone Width (B) mm - 28.971
Cone Width (B) inch - 1.1406
Cup Width (C) mm - 21.433
Cup Width (C) inch - 0.8438
Effective Center Location (a) mm - 3
Effective Center Location (a) inch - 0.12

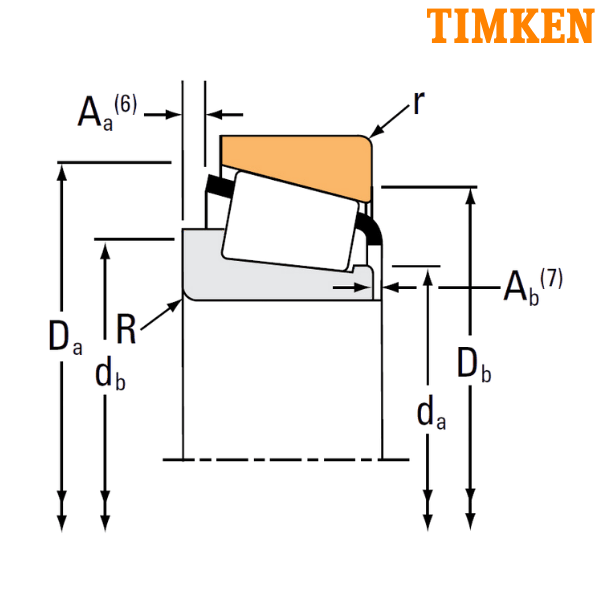

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 101
Cone Frontface Backing Diameter (da) inch - 3.98
Cone Backface Backing Diameter (db) mm - 107
Cone Backface Backing Diameter (db) inch - 4.21
Max Housing Fillet Radius (r) mm - 3
Max Housing Fillet Radius (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 142
Cup Frontface Backing Diameter (Da) inch - 5.59
Cup Backface Backing Diameter (Db) mm - 134
Cup Backface Backing Diameter (Db) inch - 5.28
Cage-Cone Backface Clearance (Aa) mm - 2.8
Cage-Cone Backface Clearance (Aa) inch - 0.11
Cage-Cone Frontface Clearance (Ab) mm - 3
Cage-Cone Frontface Clearance (Ab) inch - 0.12
Geometry Factor (G1) - 129.7
Geometry Factor (G2) - 37.2
Geometry Factor (Cg) - 0.1386
Weight (kg) - 1.83
Weight (lbs) - 4.02
Inner Part Number - 42362
Outer Part Number - 42584
TS - Single Row Tapered Roller Bearing

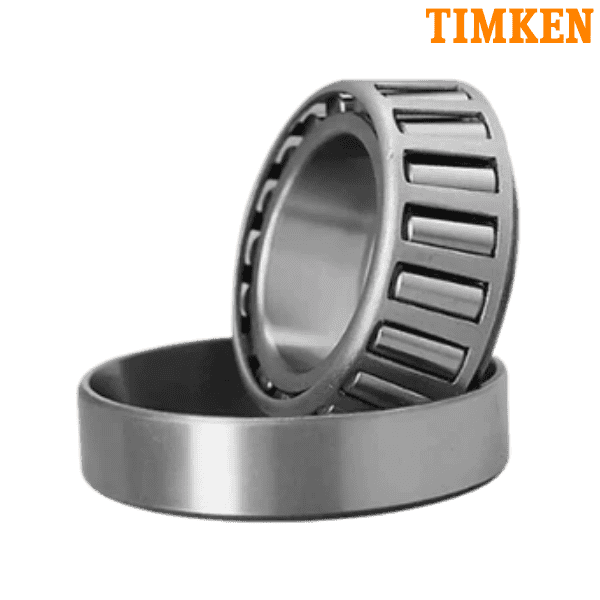

** Images are for representation purposes only
