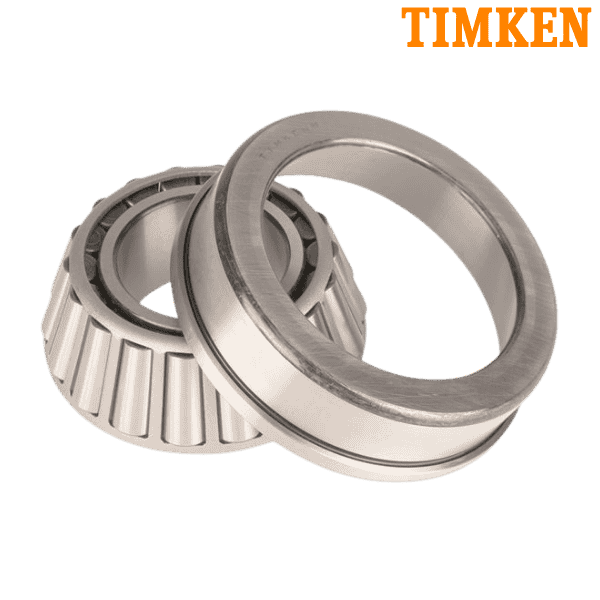

42350 - 42587-B TIMKEN

Brand - TIMKEN
Item Number - 42350 - 42587-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style

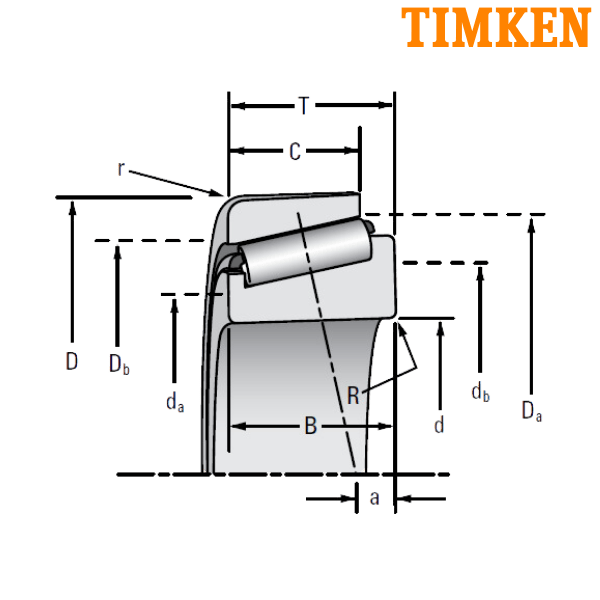

Bore Diameter (d) mm - 88.9
Bore Diameter (d) inch - 3.5
Outer Diameter (D) mm - 149.225
Outer Diameter (D) inch - 5.875
Bearing Width to Flange (T1) mm - 12.7
Bearing Width to Flange (T1) inch - 0.5
Static Radial Rating (C0) kN - 241
Static Radial Rating (C0) lbs - 54300
Dynamic Radial Rating (1 million revolutions) (C1) kN - 151
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 33900
Dynamic Radial Rating (90 million revolutions) (C90) kN - 39.1
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 8790
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 33
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 7410
Flange Outer Diameter (D1) mm - 154.7
Flange Outer Diameter (D1) inch - 6.09
Flange Width (C2) mm - 5.6
Flange Width (C2) inch - 0.22
Cone Width (B) mm - 28.971
Cone Width (B) inch - 1.1406
Cup Width (C) mm - 24.608
Cup Width (C) inch - 0.9688
Effective Center Location (a) mm - 3
Effective Center Location (a) inch - 0.12
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 98
Cone Frontface Backing Diameter (da) inch - 3.86
Cone Backface Backing Diameter (db) mm - 104
Cone Backface Backing Diameter (db) inch - 4.09
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 152
Cup Frontface Backing Diameter (Da) inch - 5.98
Cup Backface Backing Diameter (Db) mm - 134
Cup Backface Backing Diameter (Db) inch - 5.28
Stiffness (Kr10^6) N/mm - 2.52
Stiffness (Kr10^6) lbs/in - 14.4
Stiffness (Fr) kN - 3.9
Stiffness (Fr) lbs - 879
Stiffness (Ka10) N/mm - 0.518
Stiffness (Ka10) lbs/in - 2.96
Stiffness (Fa) kN - 3.3
Stiffness (Fa) lbs - 741
Speed Rating (RPM) - 3300
Weight (kg) - 2.13
Weight (lbs) - 4.7

** Images are for representation purposes only
