Description
Brand - DODGE
Item Number - 423373 DODGE - BRG22316KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22316KC3
Shaft Size (inch) - 2.6875
Housing - 616
Bearing Number - 22316K
Approximate Weight (lbs) - 13.1

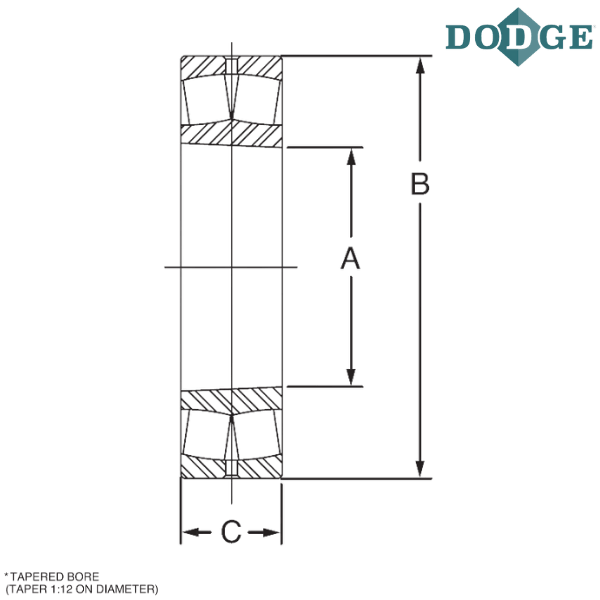

A (inch) - 3.1496
A (mm) - 80
Outer Diameter (B) inch - 6.6929
Outer Diameter (B) mm - 170
C (inch) - 2.2835
C (mm) - 58
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
