Description
Brand - DODGE
Item Number - 423372 DODGE - BRG22310KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22310KC3
Shaft Size (inch) - 1.6875
Housing - 610
Bearing Number - 22310K
Approximate Weight (lbs) - 3.9

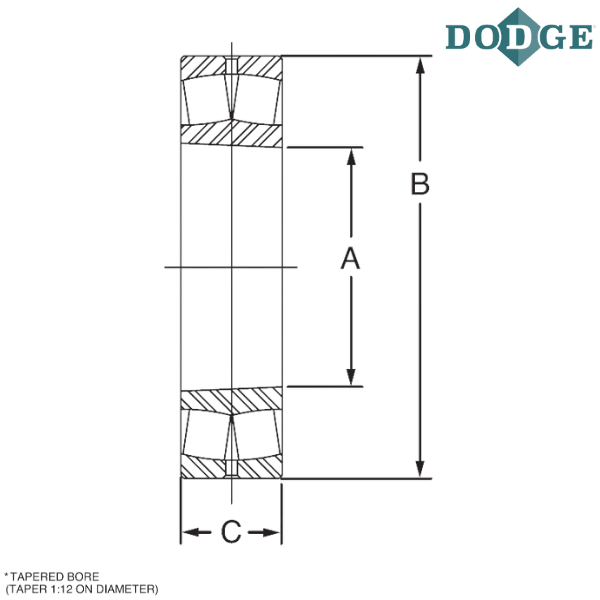

A (inch) - 1.9685
A (mm) - 50
Outer Diameter (B) inch - 4.3307
Outer Diameter (B) mm - 110
C (inch) - 1.5748
C (mm) - 40
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
