Description
Brand - DODGE
Item Number - 423140 DODGE - BRG22338C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22338C3
Housing - 338
Bearing Number - 22338
Approximate Weight (lbs) - 179

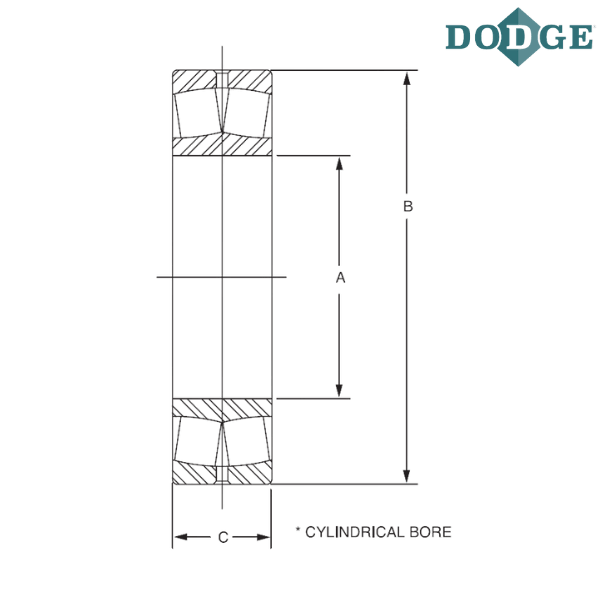

Bore Diameter (A) inch - 7.4803
Bore Diameter (A) mm - 190
Outer Diameter (B) inch - 15.748
Outer Diameter (B) mm - 400
C (inch) - 5.1969
C (mm) - 132
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
