Description
Brand - DODGE
Item Number - 423136 DODGE - BRG22328C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22328C3
Housing - 328
Bearing Number - 22328
Approximate Weight (lbs) - 75.4

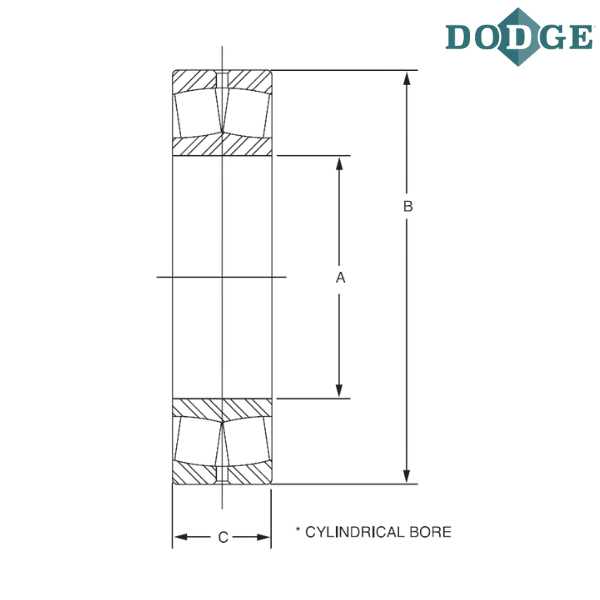

Bore Diameter (A) inch - 5.5118
Bore Diameter (A) mm - 140
Outer Diameter (B) inch - 11.811
Outer Diameter (B) mm - 300
C (inch) - 4.0157
C (mm) - 102
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
