Description
Brand - DODGE
Item Number - 423135 DODGE - BRG22326C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22326C3
Housing - 326
Bearing Number - 22326
Approximate Weight (lbs) - 59.7

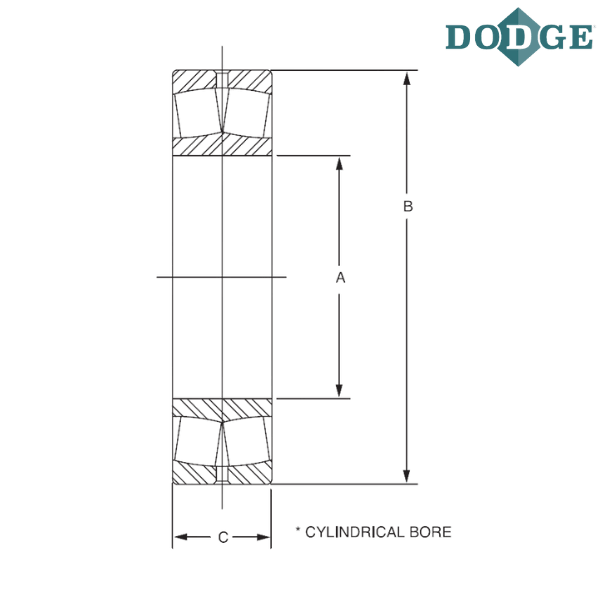

Bore Diameter (A) inch - 5.1181
Bore Diameter (A) mm - 130
Outer Diameter (B) inch - 11.0236
Outer Diameter (B) mm - 280
C (inch) - 3.6614
C (mm) - 93
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
