Description
Brand - DODGE
Item Number - 423132 DODGE - BRG22320C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22320C3
Housing - 320
Bearing Number - 22320
Approximate Weight (lbs) - 28

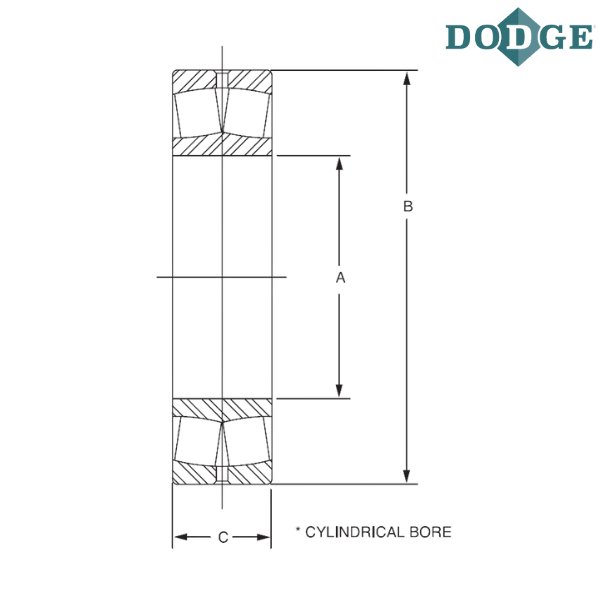

Bore Diameter (A) inch - 3.937
Bore Diameter (A) mm - 100
Outer Diameter (B) inch - 8.4646
Outer Diameter (B) mm - 215
C (inch) - 2.874
C (mm) - 73
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
