Description
Brand - DODGE
Item Number - 423129 DODGE - BRG22314C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22314C3
Housing - 314
Bearing Number - 22314
Approximate Weight (lbs) - 9.3

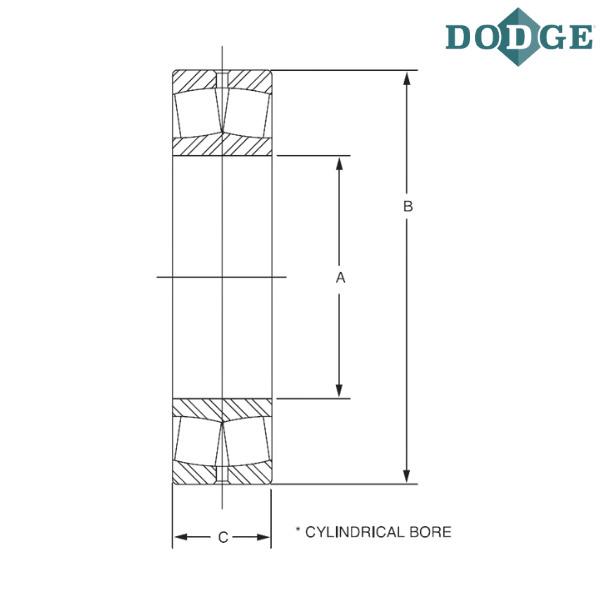

Bore Diameter (A) inch - 2.7559
Bore Diameter (A) mm - 70
Outer Diameter (B) inch - 5.9055
Outer Diameter (B) mm - 150
C (inch) - 2.0079
C (mm) - 51
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
