Description
Brand - DODGE
Item Number - 423128 DODGE - BRG22313C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22313C3
Housing - 313
Bearing Number - 22313
Approximate Weight (lbs) - 7.8

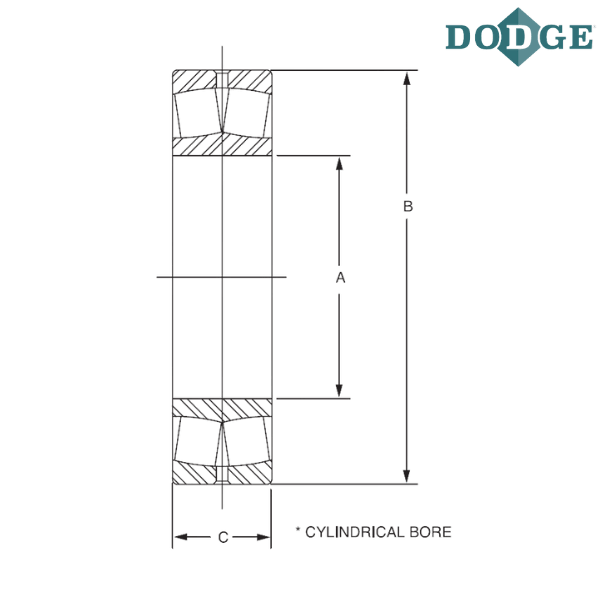

Bore Diameter (A) inch - 2.5591
Bore Diameter (A) mm - 65
Outer Diameter (B) inch - 5.5118
Outer Diameter (B) mm - 140
C (inch) - 1.8898
C (mm) - 48
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
