Description
Brand - DODGE

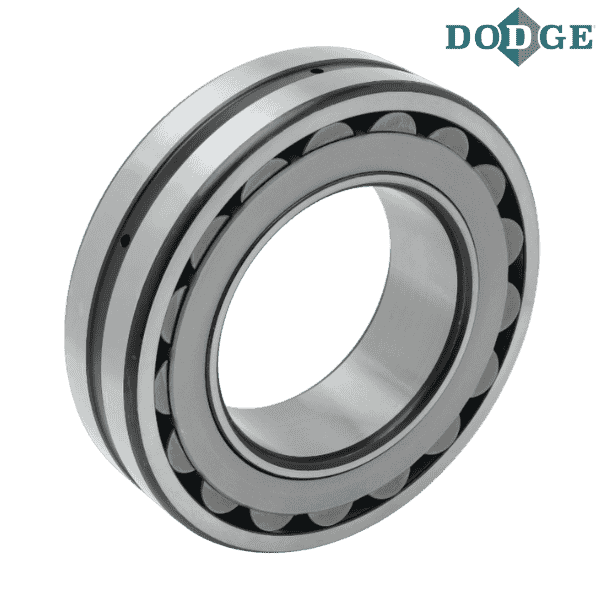

Item Number - 423125 DODGE - BRG22309C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22309C3
Housing - 309
Bearing Number - 22309
Approximate Weight (lbs) - 3

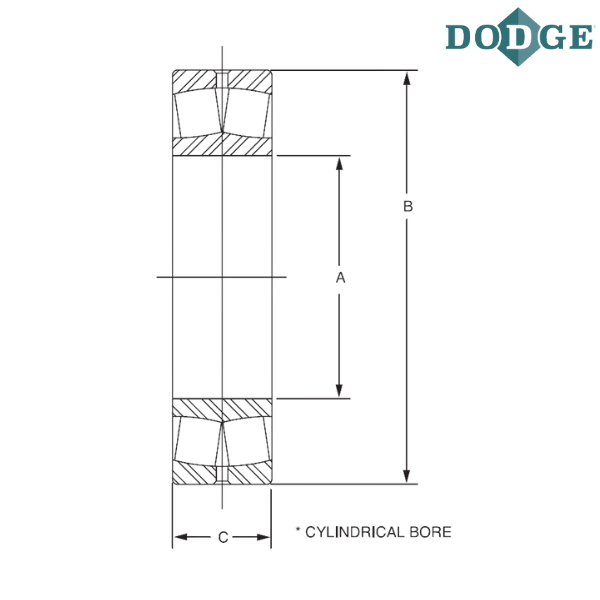

Bore Diameter (A) inch - 1.7717
Bore Diameter (A) mm - 45
Outer Diameter (B) inch - 3.937
Outer Diameter (B) mm - 100
C (inch) - 1.4173
C (mm) - 36
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
