Description
Brand - DODGE
Item Number - 423122 DODGE - BRG22338KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22338KC3
Shaft Size (inch) - 6.9375, 7.0
Housing - 638
Bearing Number - 22338K
Approximate Weight (lbs) - 179

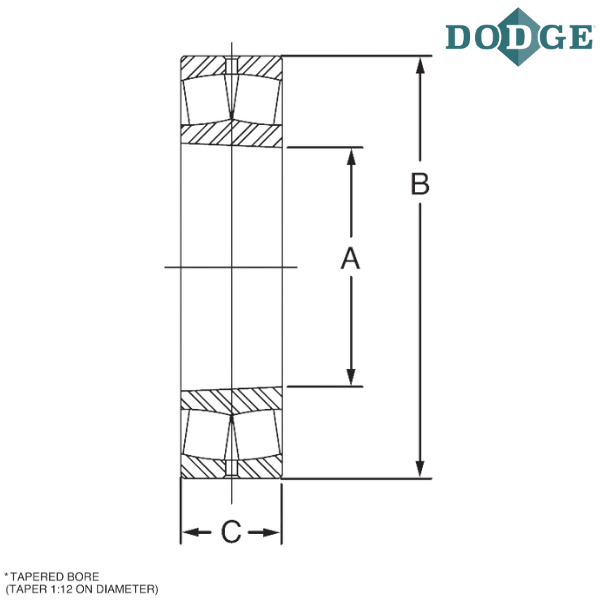

A (inch) - 7.4803
A (mm) - 190
Outer Diameter (B) inch - 15.748
Outer Diameter (B) mm - 400
C (inch) - 5.1969
C (mm) - 132
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
