Description
Brand - DODGE
Item Number - 423116 DODGE - BRG22330KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22330KC3
Shaft Size (inch) - 5.1875
Housing - 630
Bearing Number - 22330K
Approximate Weight (lbs) - 90.4

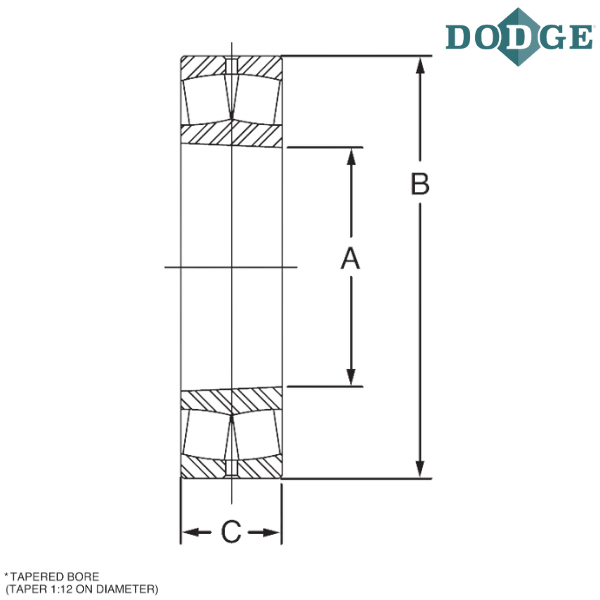

A (inch) - 5.9055
A (mm) - 150
Outer Diameter (B) inch - 12.5984
Outer Diameter (B) mm - 320
C (inch) - 4.252
C (mm) - 108
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
