Description
Brand - DODGE
Item Number - 423112 DODGE - BRG22322KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22322KC3
Shaft Size (inch) - 3.9375
Housing - 622
Bearing Number - 22322K
Approximate Weight (lbs) - 38.8

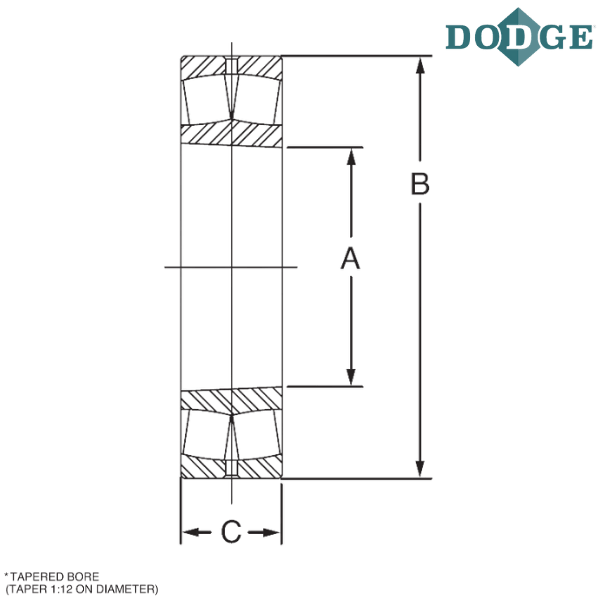

A (inch) - 4.3307
A (mm) - 110
Outer Diameter (B) inch - 9.4488
Outer Diameter (B) mm - 240
C (inch) - 3.1496
C (mm) - 80
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
